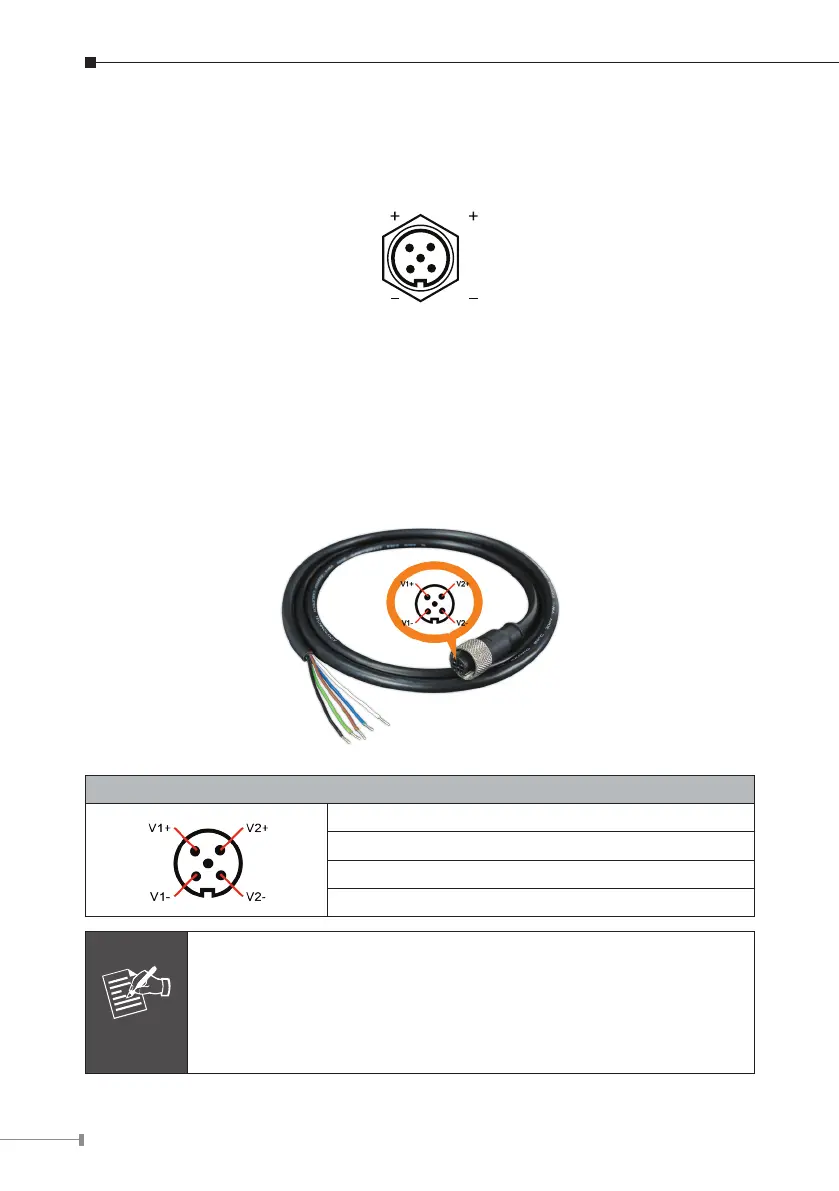

2.6 M12 DC Power Connector Pin Assignment
The front panel of the Industrial Managed Switch provides one M12 A-coded 5-pin
male connector for dual DC power input.
V2
V2
V1
V1
INPUT
DC 48-56V
2.7 M12 DC Power Cable Wiring
Please use the power cable with the M12 A-coded 5-pin female connector from the
Industrial Managed Switch package for DC power input. The M12 DC power cable
pin assignment is shown below:
M12 DC power cable pin assignment & wire code
V1 positive (+) pin = black cable
V1 negative (-) pin = brown cable
V2 positive (+) pin = blue cable
V2 negative (-) pin = white cable
Note
1. Make sure you connect the correct power pin to your DC power
source.
2. The wire gauge for the power cable should be in the range of 12
~ 24 AWG.
3. The DC power input range is 48 ~ 56V DC.
