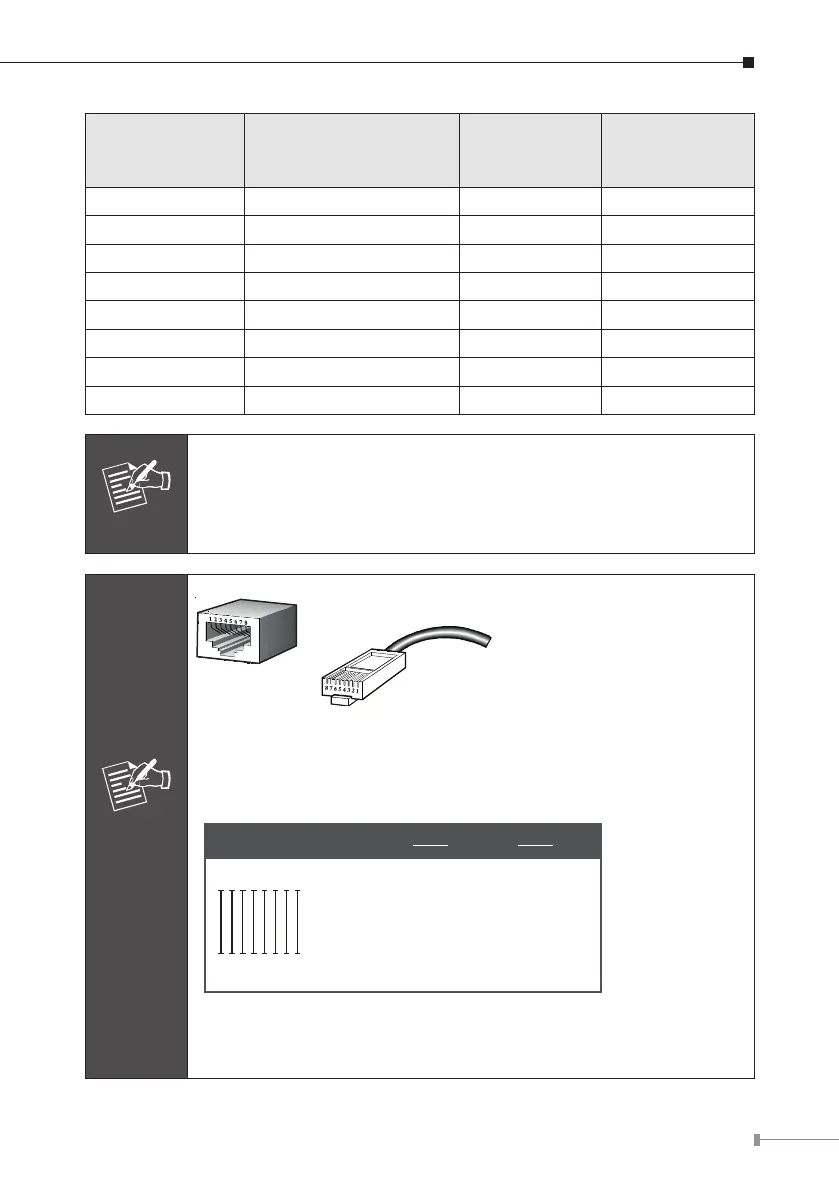

7
M12 A-code
Male Connector
Pin No.
MDI
1000BASE-T Signal ID
T568B Color
RJ45 connector
Pin No.
1 BI_DA+ white/orange 1
2 BI_DA- orange 2
3 BI_DB+ white/green 3
4 BI_DC+ blue 4
5 BI_DC- white/blue 5
6 BI_DB- green 6
7 BI_DD+ white/brown 7
8 BI_DD- brown 8
Note
As each Ethernet port of the Industrial Managed Switch is running
in auto negotiation mode, make sure the Ethernet ports of the
corresponding Ethernet devices are also running in auto negotiation
mode, otherwise, the Ethernet performance will be poor.
Note
The standard RJ45 receptacle/connector
There are 8 wires on a standard UTP/STP cable and each wire is
color-coded. The following shows the pin allocation and colors of
straight-through cable connection:
Straight Cable
SIDE 1
SIDE 1
SIDE 2
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
SIDE 2
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
1 = White/Orange
2 = Orange
3 = White/Green
4 = Blue
5 = White/Blue
6 = Green
7 = White/Brown
8 = Brown
Please make sure your waterproof RJ45 cables are with same pin
assignment and colors as the above picture before deploying the
cables into your network.
