IP-based 8-port Switched Power Manager with 2 Cascaded Ports
IPM-8221
- 24 -
4.1.3 Threshold
Click the Threshold button in the Home Page at the top of the screen. The Socket Threshould Setting
screen in Figure 4-1-4 appears. You can set the maximum and minimum values of the input current to
each socket. When the current exceeds the threshold, the PDU automatically sends alarm logs to the
specified email box address, and an alarm message is displayed on the home page, or automatically
disconnects the corresponding port to eliminate the risk of device overload. After the modification, click
the Save button to save the settings. Please refer to the 4.3.4 chapter for more detail.

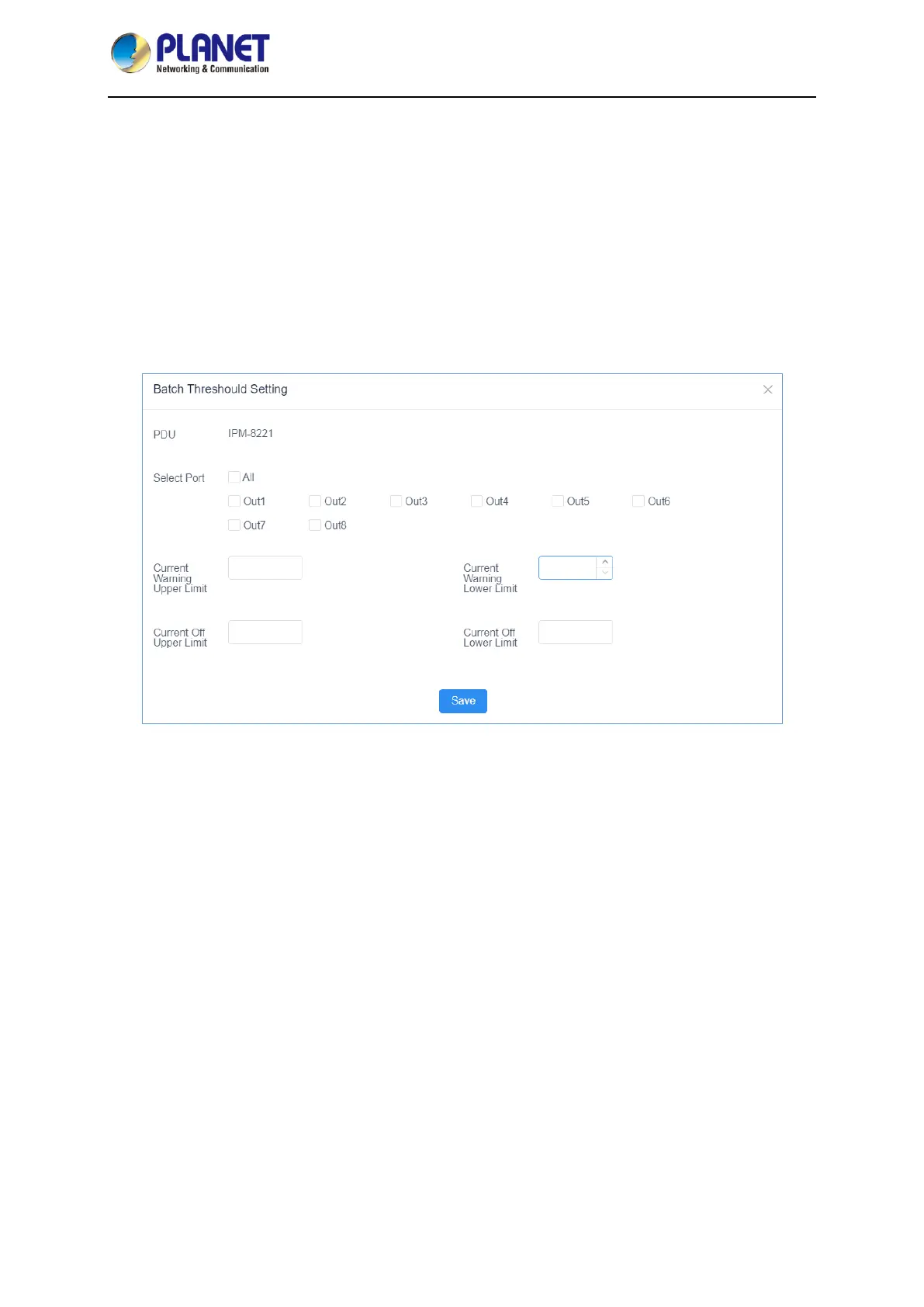

Figure 4-1-4 Socket Threshould Setting Page Screenshot
