Chapter 2. Hardware Interface
2.1 Physical Descriptions

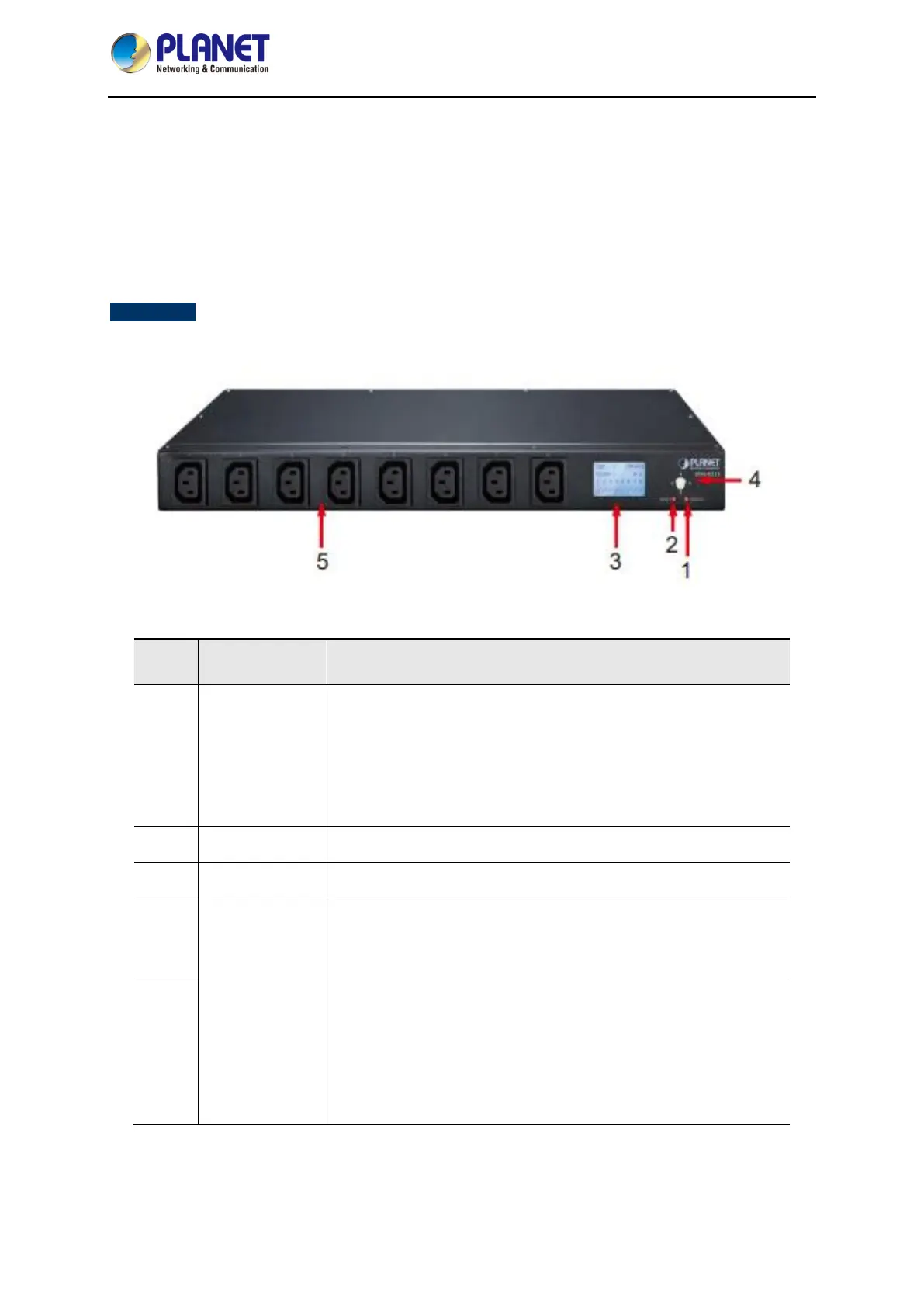

Front Panel
No.
Item
Description
1
Default Switch
This switch is recessed and must be pushed with a thin object,
such as the end of a paper clip.
 You can press this button and hold it for more than 3
seconds to reset the PDU to factory default values.
 Release this switch and restart the device to take effect.
2
Reset Switch
Hold down the key to restart the PDU.
3
LCD Displays
LCD is used to display PDU status information.
4
Interface
Selection Button
Used to control the menu function of LCD.
5
Power Output
Socket
Each power socket can connect to electrical devices with the
current less than 10A.
The total output power is less than 16A. If the power output
exceeds the maximum load, the PDU and electrical devices may
be damaged and the circuit breaker protection function may be
triggered.
