Planet WGS-4215 Series - Port to VLAN

User’s Manual of WGS Managed Series
151
The page includes the following fields:
4.5.6 Port to VLAN
Use the VLAN Static Table to configure port members for the selected VLAN index. This page allows you to add and delete port
members of each VLAN. The screen in Figure 4-5-7 appears.

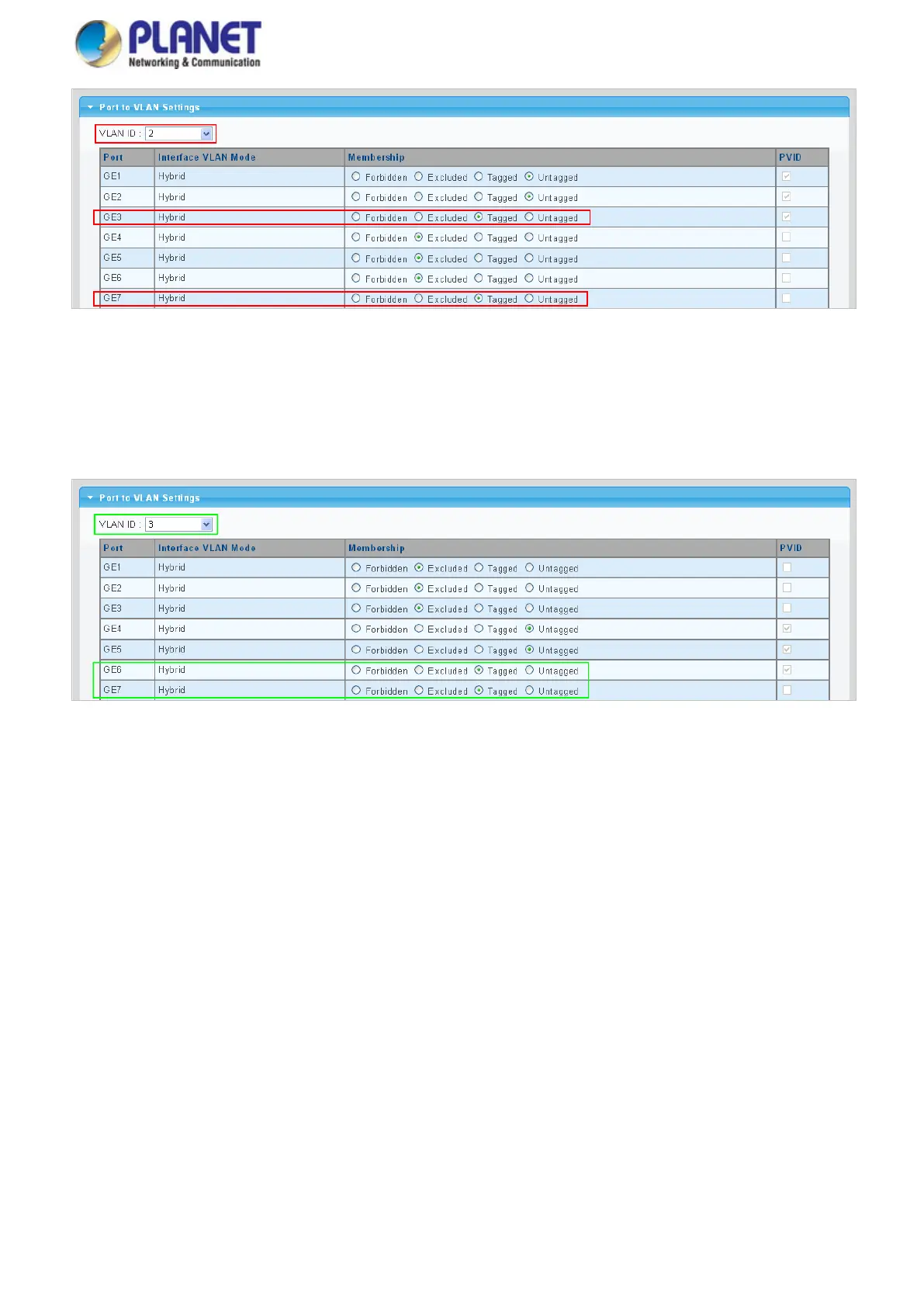

Figure 4-5-7 Port to VLAN Setting Page Screenshot
Object Description
• Port
The switch port number of the logical port
• Interface VLAN Mode
Display the current interface VLAN mode
• PVID
Display the current PVID
• Accepted Frame Type
Display the current access frame type
• Ingress Filtering
Display the current ingress filtering
• Uplink
Display the current uplink mode
• TPID
Display the current TPID
