User Manual of WNAP-C3220
-25-

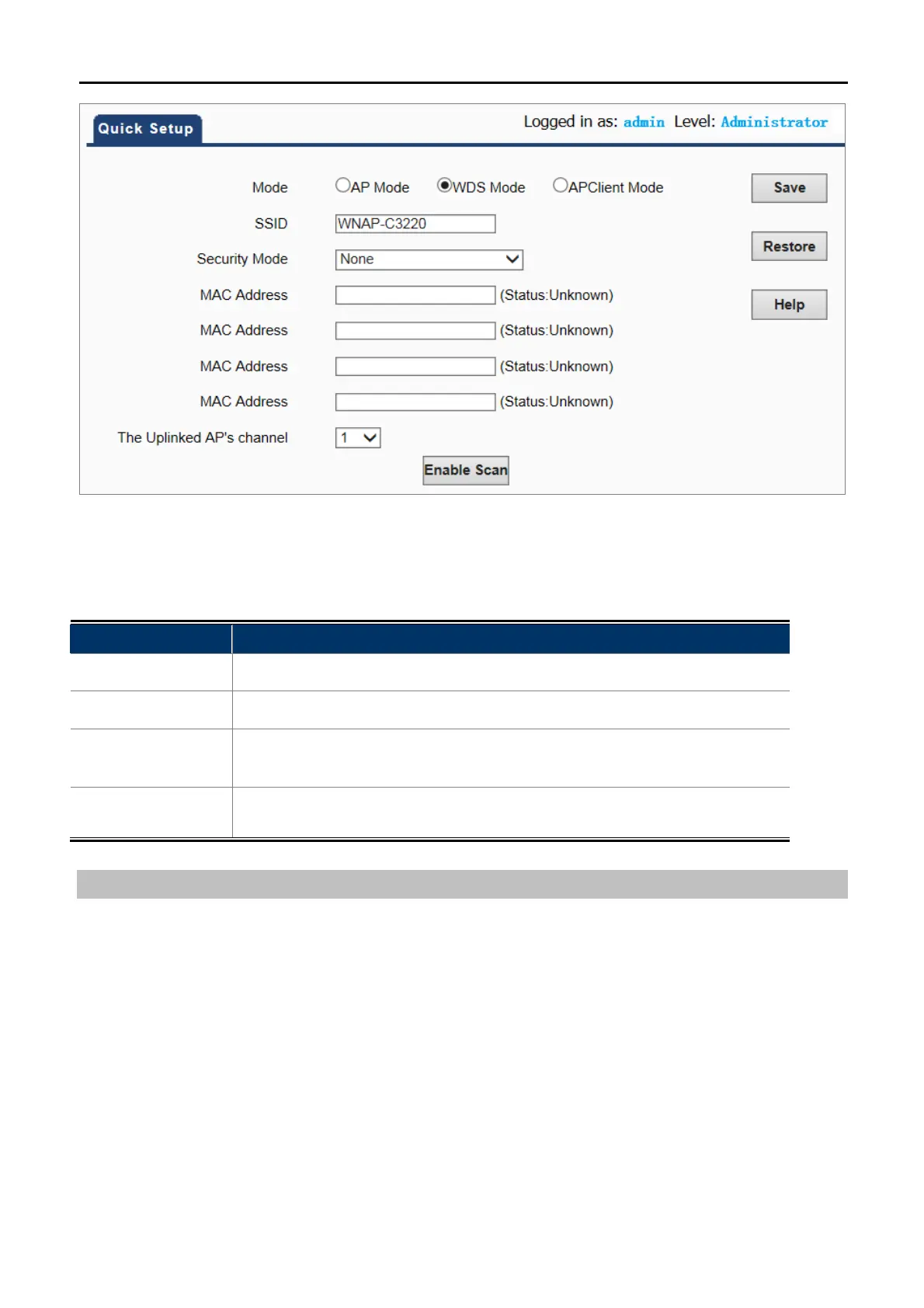

Figure 5-7 Quick Setup - WDS Mode
The page includes the following fields:
Object Description
SSID:
Displays the primary SSID's name.
Security Mode:
Displays primary SSID's security mode.
MAC Address:
The MAC address of the remote peers. The WNAP-C3220 supports a
maximum of 4 remote WDS peers.
The Uplinked
AP’s channel:
Displays the uplinked AP’s channel that you want to bridge to.
WDS Bridge - PtMP Mode
The PtMP Bridge mode which connects scattered wired network together is more complicated than PtP Bridge
mode. PtMP usually transmits wireless signals from one access point, and other access points are in charge of
receiving signals so as to share network resource. It supports a connection of up to 4 remote access points. In
this mode, wireless clients are not allowed to connect. PtMP Bridge mode can connect multiple wireless access
points together without cabling. If “Root AP” is configured as PtMP bridge mode, other (less than 4) remote
access points should select PtP bridge modes. The topology shows below:
