Planet XT-715A User Manual

10
2.2 Converter Front Panel and LED Indicators

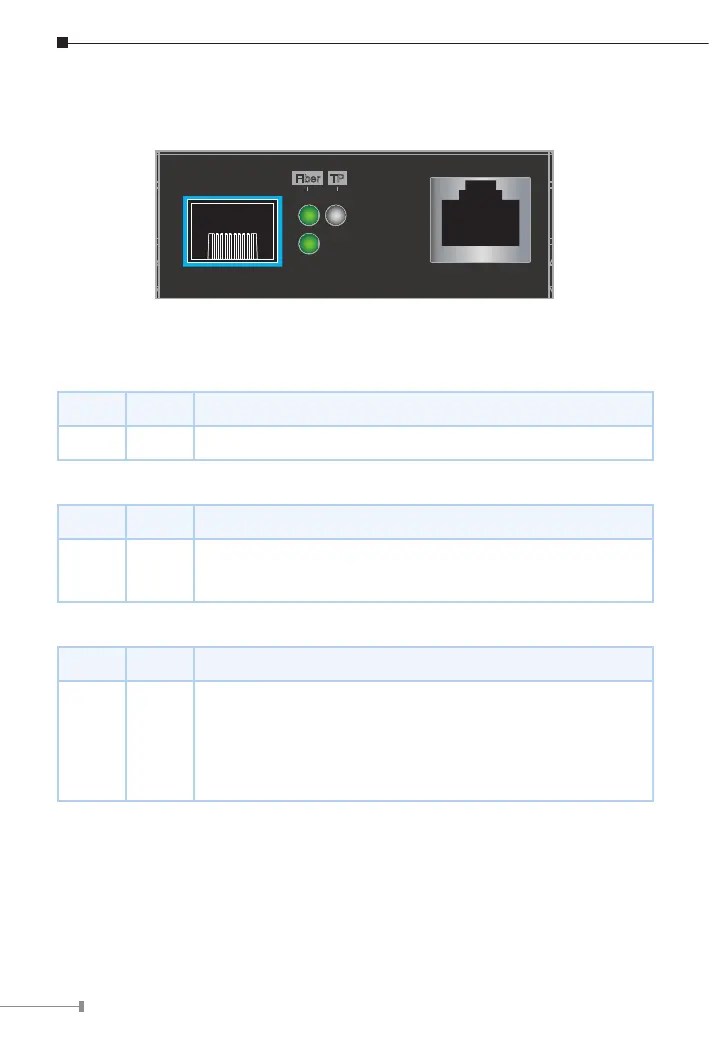

Figure 2-2 shows the front panel of the Media Converter.
10GBASE-T
10G SFP+
10 Gigabit Ethernet Converter
XT-715A
TPFiber
LNK/ACT
PWR
Figure 2-2: XT-715A Front Panel
System
LED Color Function
PWR Green Lights to indicate the 10G Media Converter has power.
 10GBASE-X SFP+ Interface
LED Color Function
Fiber Green
Lights to indicate the link through that port is operating at
10Gbps.
 10GBASE-T Ethernet Port
LED Color Function
TP Green
Lights to indicate the link through that port is successfully
established at 10Gbps.
Blinks to indicate that the 10G Media Converter is actively
sending or receiving data over that port.
