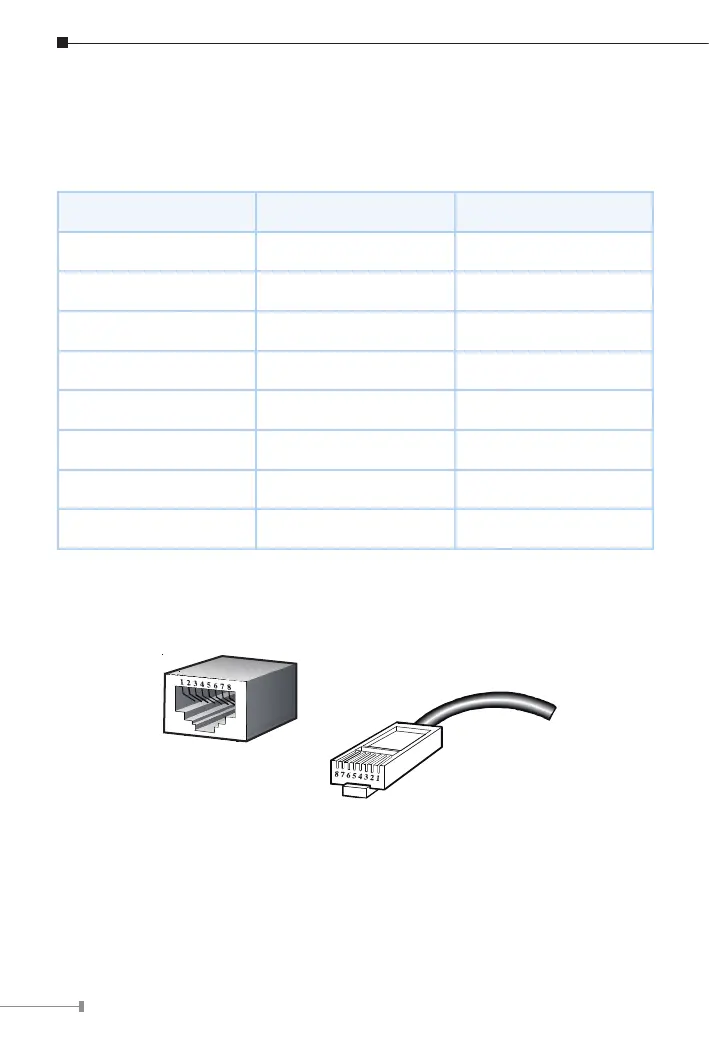

APPENDIX B: Networking Connection
B.1 Media Converter
’
s RJ45 Pin
Assignments
2.5G, 5G and 10GBASE-T
Contact
MDI
MDI-
X
1
BI_DA+
BI_DB+
2
BI_DA-
BI_DB-
3
BI_DB+
BI_DA+
4
BI_DC+
BI_DD+
5
BI_DC-
BI_DD-
6
BI_DB-
BI_DA-
7
BI_DD+
BI_DC+
8
BI_DD-
BI_DC-
B.2 RJ45 Cable Pin
Assignments
21
23
Table of Contents
Table of Contents
4
Introduction
5
Package Contents
5
Product Features
6
Product Specifications
7
Hardware Description
9
Physical Dimensions
9
Converter Front Panel and LED Indicators
10
Rear Panel
11
Power Information
11
Installation
13
Stand-Alone Installation
13
Wall-Mount Installation
14
Media Chassis Installation
15
Optional DIN-Rail Installation
16
Cable Connection
17
APPENDIX A: Approved PLANET SFP+ Transceivers
20
APPENDIX B: Networking Connection
22
Media Converter's RJ45 Pin Assignments
22
RJ45 Cable Pin Assignments
22
