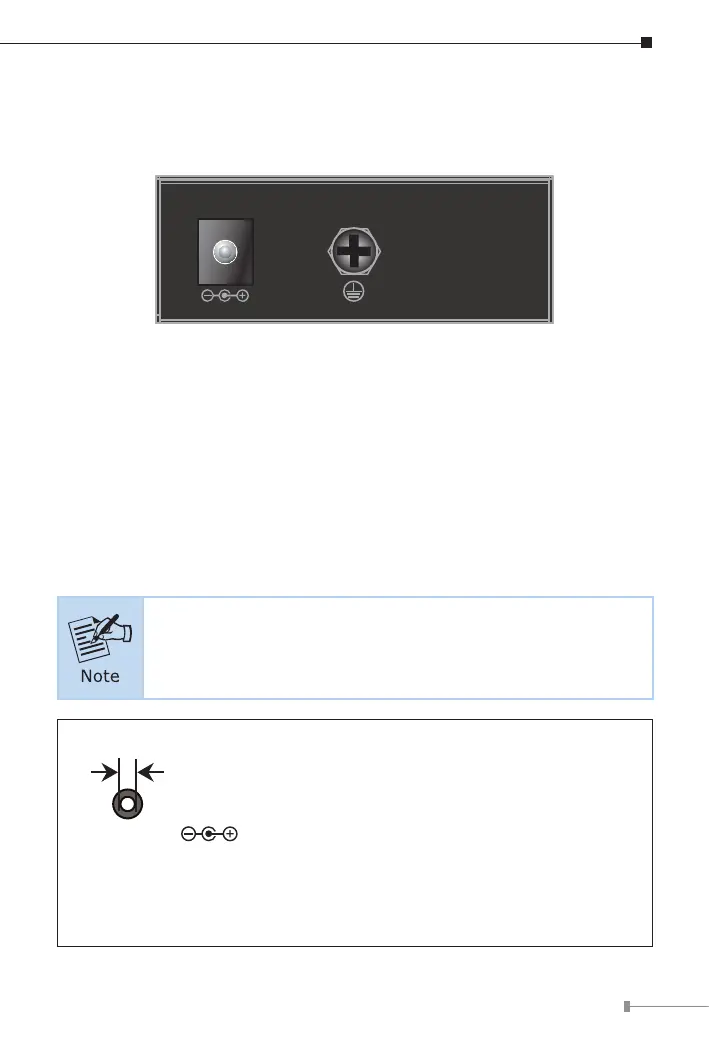

2.3 Rear Panel
The rear panel of the XT-715A consists of one DC jack, which accepts input
power with 5V DC, 2A.
5V DC
Figure 2-3: One DC jack for DC power input
2.4 Power Information:
The central pole of the Media Converter’s power jacks measures 2.5mm wide
that requires +5VDC power input. It conforms to the bundled AC-DC adapter
and PLANET’s media chassis. Should you have the issue of power connection,
please contact your local sales representative.
Please keep the AC-DC adapter as a spare part when the XT-715A is installed
in a media chassis.
Before installing the media converter into the converter slot
of PLANET media converter chassis, please remove the earth
grounding screw first.
2.5mm
Width of DC Receptacle: 2.5mm
+5V for each slot
DC receptacle is 2.5mm wide that matches the central pole; the width of the
Media Converter DC jack also measures 2.5mm.
Warning: Do not install any improper unit.
