Step 5: When all the connections are all set and the LED lights all show
normal, the installation is completed.
1. Install the 10G SFP+ transceiver into the media converter
10G SFP+ slot; the 10G SFP+ slot LNK/ACT LED will light on
(Chipset restriction).
2. The media converter 10G SFP+ slot will work after the 10G
RJ45 port has been successfully connected.
3.2 Wall-mount Installation
Step 1: Please nd the wall that can mount the Media Converter.
Step 2: Screw two screws on the wall.

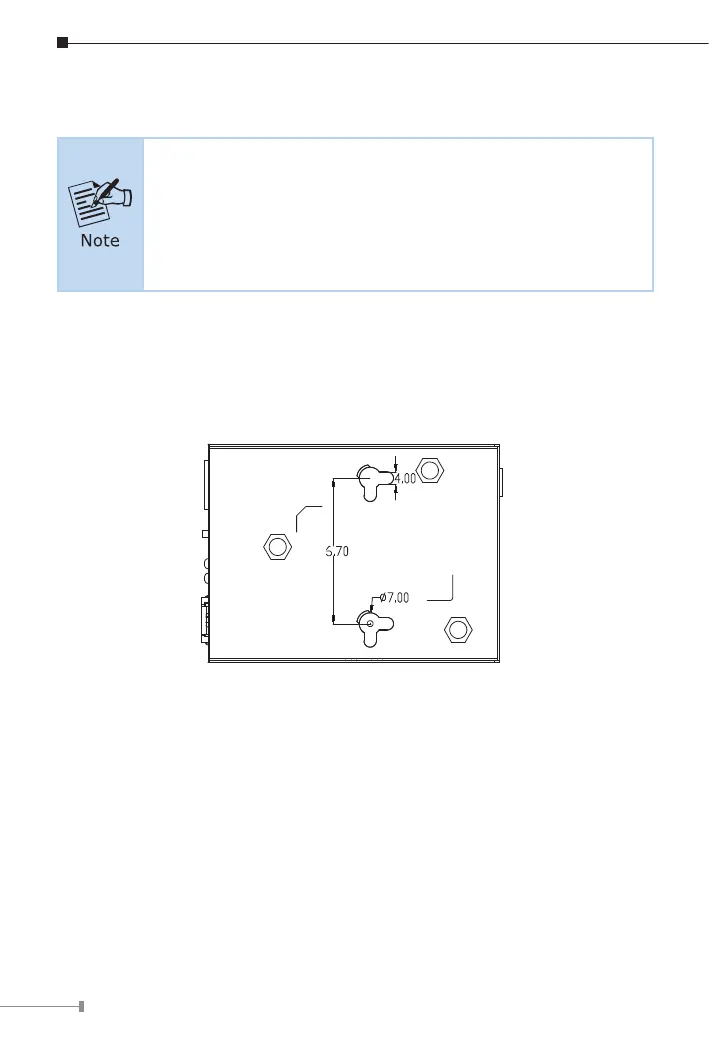

Unit: mm
Step 3: Hang the Media Converter on the screws from the wall.
To Next Page
