124
Mini100/Mini2
※ If your print server is not detected, refer to Section 4-2-c in Chapter 4 and
check whether TCP/IP protocol has been installed. If the same problem
persists even though the protocol is already set up, check whether a valid
IP address has been assigned to the print server.

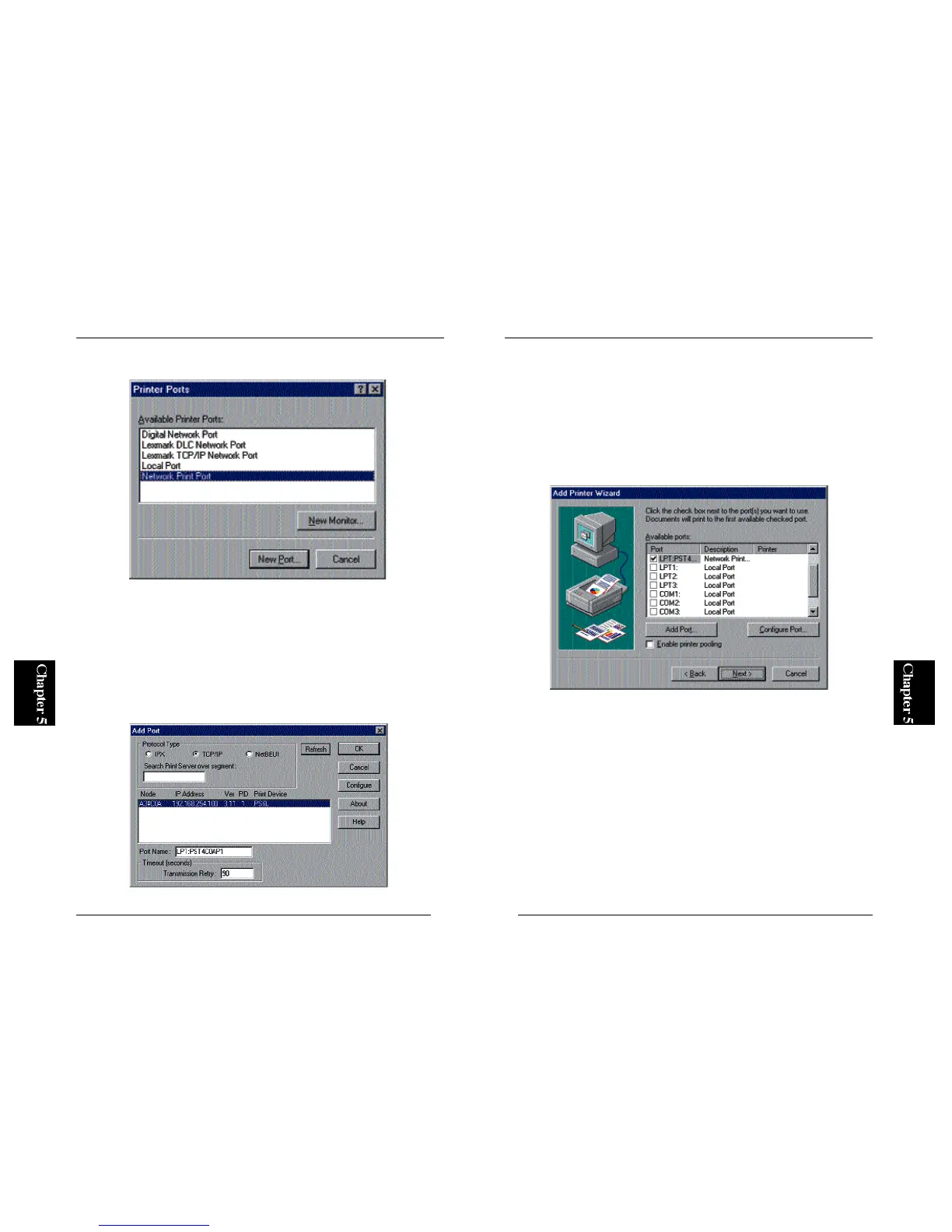

5. The new port should be now visible in the Available Ports list (see
below). Click on the Next button.
123
Mini100/Mini2
3. Select “PS Port” and click on the New Port button.
※ The PS Port item will not be shown if the utility is not installed properly.
Please go to Section 3-2 in Chapter 3 and install the program using “Setup
Diskette”.
4. A window labeled “Add Port” will be displayed. Click on the TCP/IP
tab. After a while, the wizard detects your print server. Click on the print
server name (under Device Name) and click on the OK button.
