PREPARATIONS FOR THE EXPOSURE
User's manual

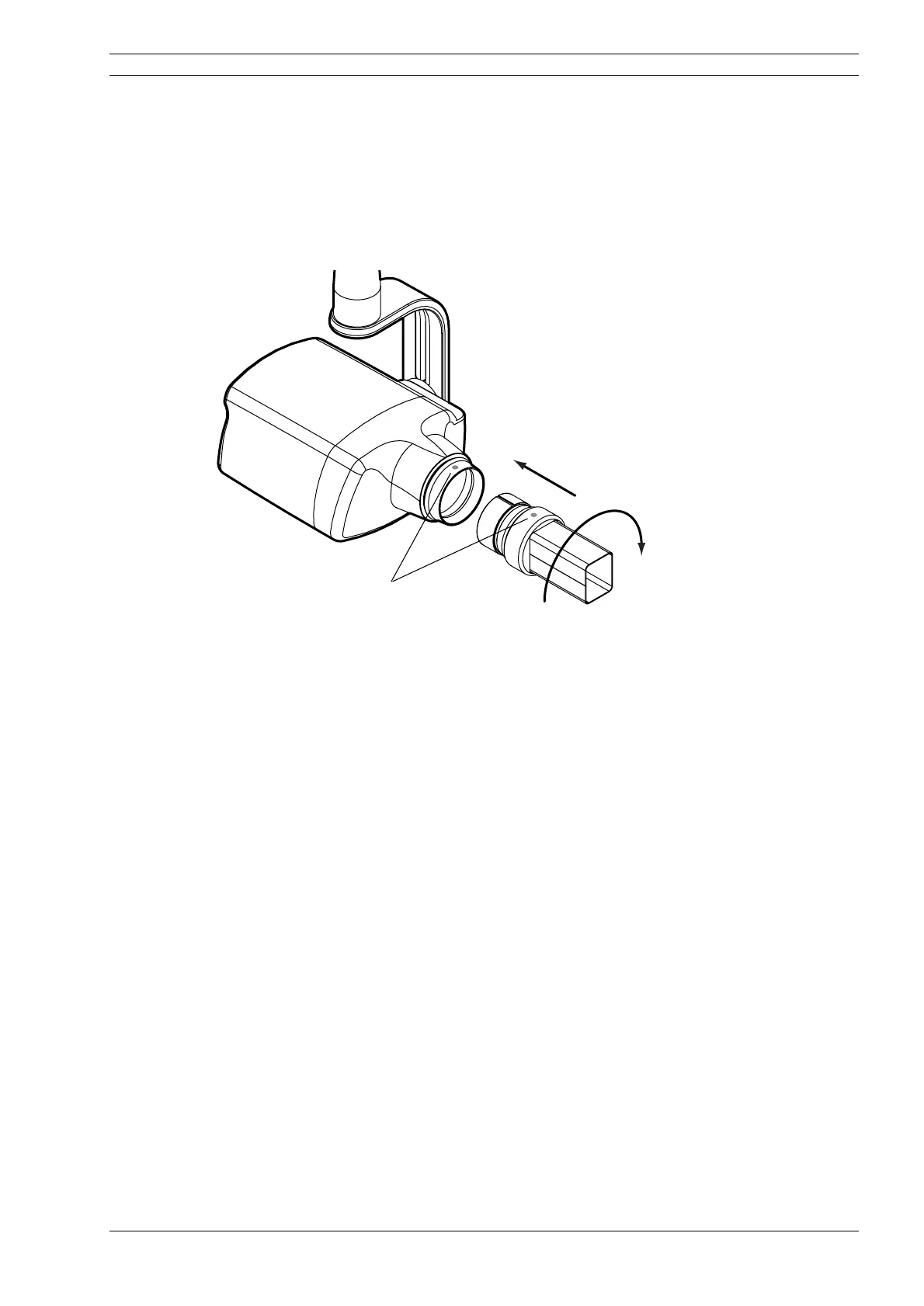

Long rectangular cone
Push the rectangular cone into the short cone so that
the red dots on the short cone and on the rectangular
cone are in line (1), and rotate the cone 180°, until the
black dot on the rectangular cone and the red dot on
the short cone are in line (2). The cone can be now ro-
tated in its position ±90°.
The rectangular cone can be removed when the red
dots on the short cone and on the rectangular cone are
in line.
180°
1.
2.
trotonen 310197
Red points
