Plastimo 406-T User Manual

- 4 -

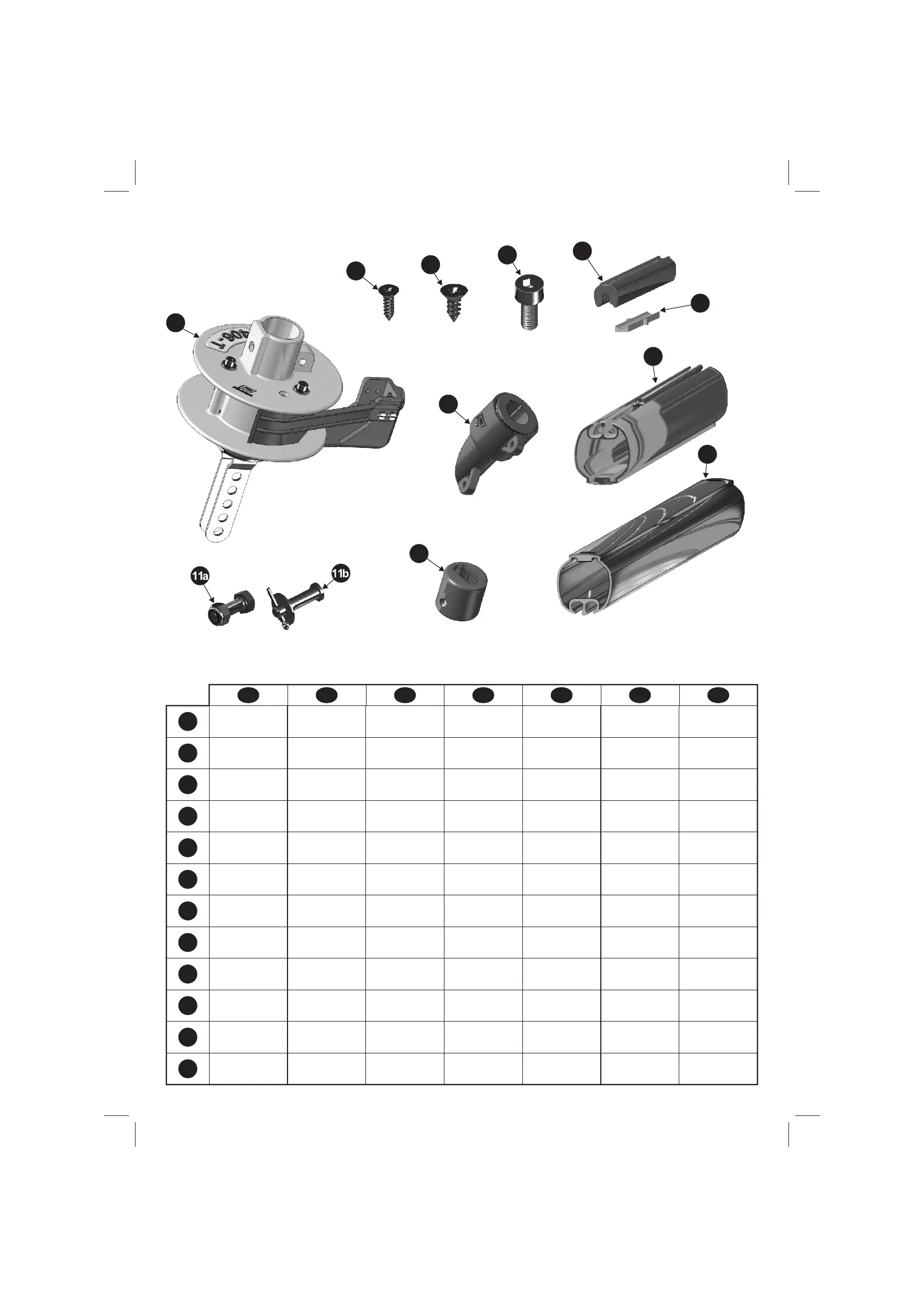

406-T
2
3
4
x6
5
6
x4
7
9
1
8
x4
10
x2
DFGB
S
ENL
4 Coupling sleeves
4 Connecting stops
4 Verbindungsstücke 4 koppelstukken 4 piezas de uniones 4 Skarvstycken 4 Pezzi di giunzione
1 base spar
1 profil aluminium bas 1 unteres Profil 1 basisprofiel 1 perfil bajo 1 Bottenprofil 1 profilato basso
2 Intermediate spars
2 profils aluminium
intermédiaires
2 Zwischenprofile 2 standaardprofielen 2 Perfiles intermedios 2 Standard profiler 2 Profilati intermedi
1 screw+nut M8x35
=>chainplate
1 vis+écrou M8x35
modèle lattes
1 Schraube M8x35
Terminalmontage
1 bunten M8x35
stevenplaatuitvoering
1 tornillo M8x35
(placas)
1 insex M8x35 1 Vite M8x35
Modello Landre
1 Shoudered clevis pin
Ø8 (=>turnbuckle)
1 axe épaulé Ø8
modèle ridoir
1 Bolzen, dick Ø8
Stagspannermontage
1 pen Ø8
spanschroefuitvoering
1 Bulón Ø8
(tensor)
1 Riggbult Ø8
1 Asse a testa Ø8
Modello arridatoi
1 drum unit 1 ensemble tambour
1 Trommel 1 roltrommel
1 conjunto tambor
1 Trumma med
revlinematare
1 insieme tamburo
1 top end stop
1 embout profil 1 Profilansatzstück
1 top eind stuk
1 terminal tope
1 Toppdel
1 Terminale profilato
1 screw Ø4.8x12.7
(top end stop)
1 vis tôle TF Ø4.8x12.7
fixation embout profil
1 Schraube Ø4.8x12.7
(Profilansatzstück)
1 schroef Ø4.8x12.7
(top eind stuk )
1 tornillo Ø4.8x12.7
(terminal tope)
1 spårskruv Ø4.8x12.7
(Toppdel)
1 vite lamiera Ø4.8x12.7
(terminale profilato)
1 screw M5x12
(base spar)
1 vis Chc M5x12
fixation profil bas
1 Schraube M5x12
(unteres Profil)
1 schroef M5x12
(basisprofiel)
1 tornillo M5x12
(perfil bajo)
1 insex M5x12
(Bottenprofil)
1 vite a brugola M5x12
(profilato basso)
6 screws Ø3.9x12.7
(spar connections)
6 vis tôle Ø3.9x12.7
liaison profils
6 Schraube Ø3.9x12.7
(Verbindung der Profile)
6 bouten Ø3.9x12.7
(koppelstukken )
6 Tornillos Ø3.9x12.7
(unión perfiles)
6 insex Ø3.9x12.7
(profilkopplingarna)
6 vite Ø3.9x12.7
(collegamento profilati)
1 halyard swivel
1 émerillon
1 Fallwirbel
1 valwartel
1 giratorio
1 Fallsvirvel 1 mulinello
I
2
3
4
5
6
7
8
9
10
11a
1
11b
4 pièces de jonction
4 guides étai 4 Vorstagführung 4 Verbingsstopper 4 Guía estay
4 Låsplattor
till skarvstycken
4 Guide di strallo
58224_03 - Page 4/68
