Section 2. Installing the PX-760A Internal ATAPI Drive
PX-760 Installation and Users Manual 29
About Cable Select
The Cable Select jumper position sets the PX-760A drive to use the
CSEL signal from the IDE interface for configuration purposes. This
signal automatically selects the correct Master/Slave setting for the
drive.

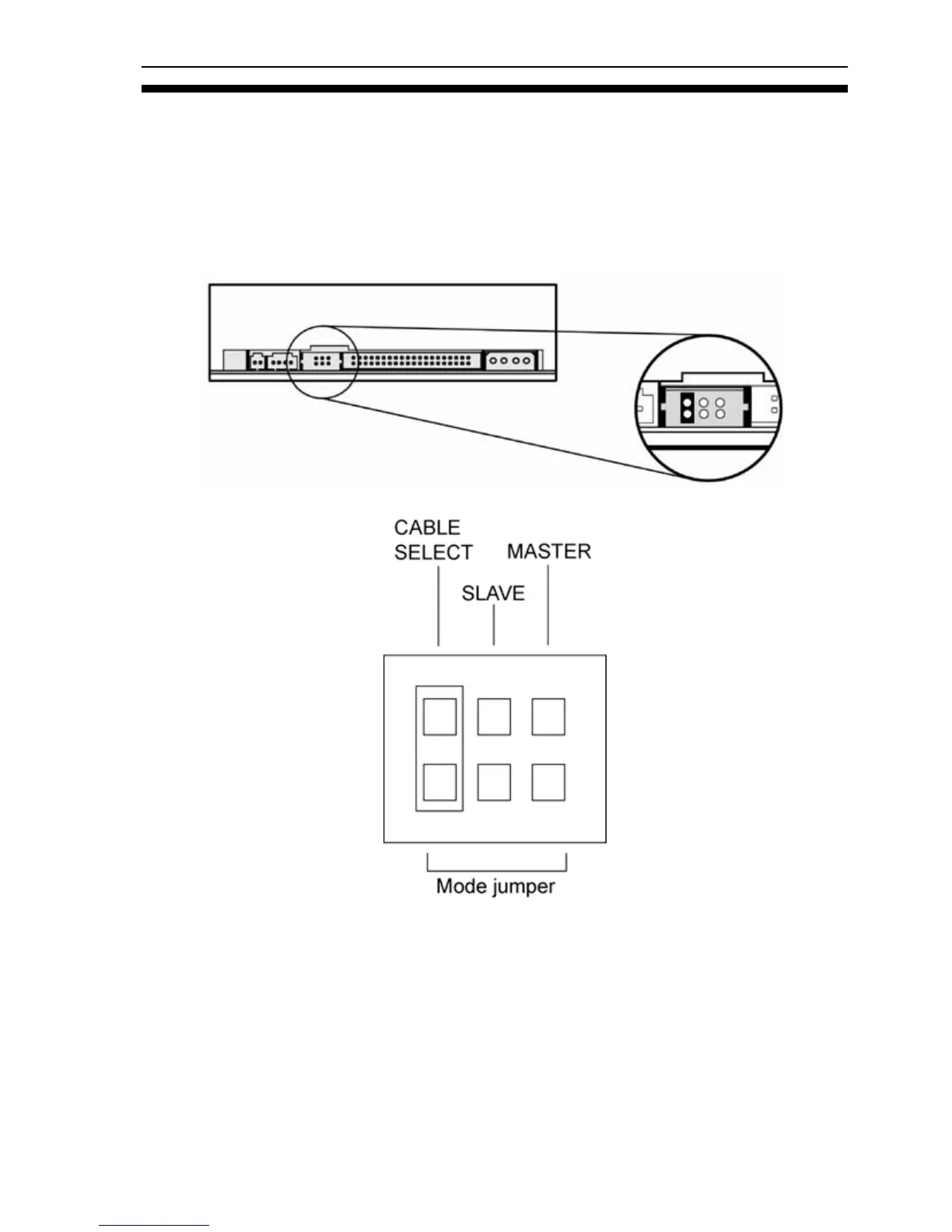

Figure 12: Configuring the PX-760A drive for Cable Select
To use CSEL, you must have:
• A computer that supports CSEL.
• An IDE cable that supports CSEL (Cable Select). The 80-conductor
IDE/ATA cable from Plextor supports CSEL.
