PLS AR-200 - Connecting the Hand Control; Placing the Hand Control

12
2.1.2. ConnecngtheHandControl
1. Push the Hand Control latch
(no. 3) aside.
2. The plug on the Hand Control must
be pressed rmly into the socket on
the underside of the Ceiling Hoist,
while holding the latch aside.
3. Release the latch.
4. Pull gently on the plug to make sure
it is locked in posion.
The Hand Control is under less stress thanks to
the locking system. This prevents the plug from
being pulled out of the Ceiling Hoist.
Use cauon when gaining access to the
underside of the hoist to aach the hand
control. Use a stepladder or other similarly
stable aid.
2 .1 . 3 . Us i n g t h e H a nd  C on t ro l 
When moving a care recipient, the Hand Control
can be hung on the hoisng belt clip. When the
Ceiling Hoist is not in use, it is recommended to
place the Hand Control in the wall charger so that
the hoist can charge (see secon 2.2).
Never use the Hand Control or the
Spreader Bar cable as a pull cord! This
could damage the cord or make the Hand
Control spring back with speed resulng
in injuries.

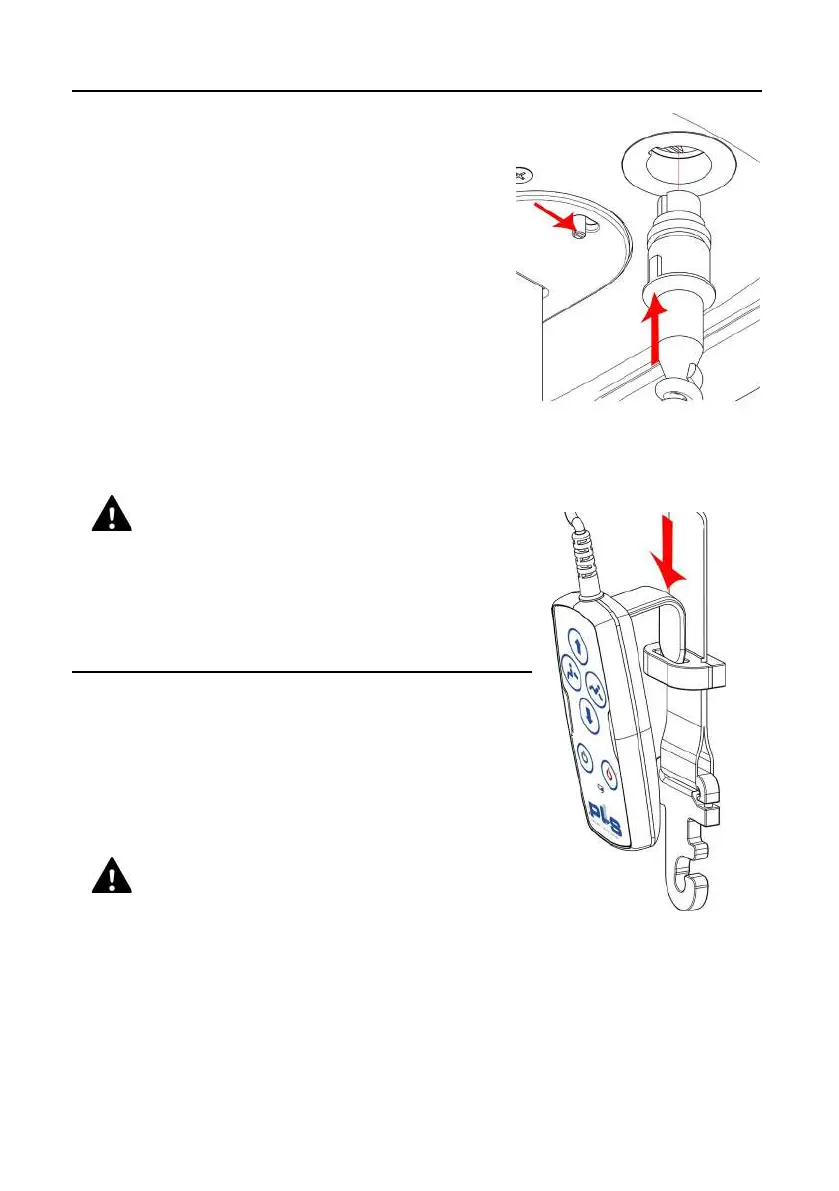

Figure 5, connecng the
Hand Control
Figure 6, Hand Control
in the hoisng belt clip
