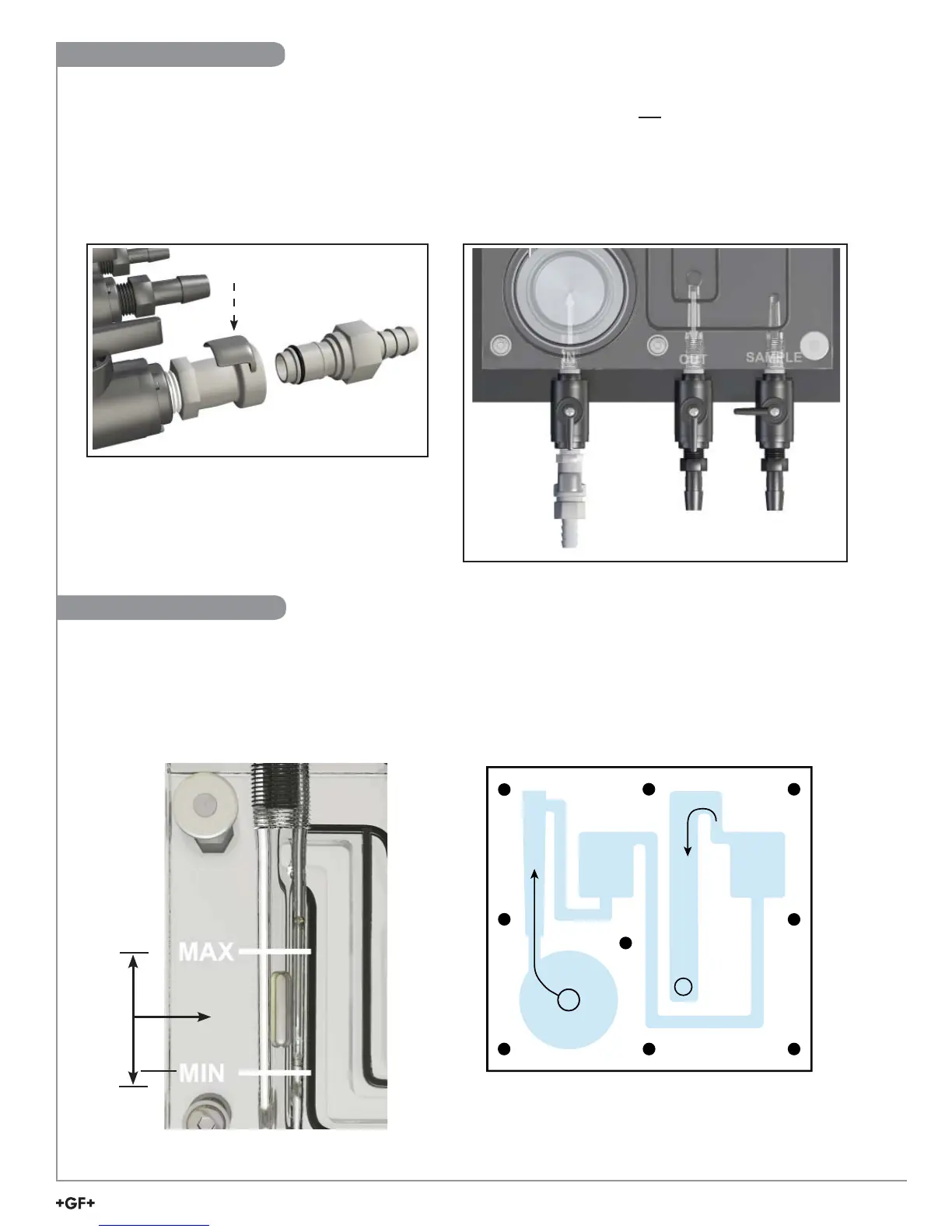

+GF+ Signet 4630 - Tubing Connections; Water Flow

13
463X Chlorine Systems Manual
IN
OUT
pH Cl
OK
Flow Rate
The fl ow rate is in the proper range when the fl oat is
between the Min. and Max. markers on the fl ow cell. The
fl ow range limits are 30.24 to 45.36 L/h (8 to 12 gal/h).
Use suitable 9.5 mm (3/8 in) ID tubing that is rated for your
inlet pressure. Use hose clamps.
Valve position for start up and normal use.
Note: Turn off inlet valve fi rst when stopping water fl ow.
• The drain tube must be positioned lower than the infl uent
water source to allow proper fl ow through the fl ow cell.
The fl ow cell must drain by gravity, not system pressure.
• When testing, allow the sample to fl ow for a few seconds
before collection.
Inlet Quick Release Connection
Press down gray plunger to release. Water fl ow is
automatically shut off when disconnected.
For Low Flow applications (fl ow less than 1 bar/15 psi), the
Flow Regulator can be removed and the fl ow adjusted using
the Flow Cell ball valve. (NOTE: The inlet hose barb will also
need to be changed. Contact factory for details.)
Inlet
Drain
(to outlet)
Sampling port
(fl ow off)
Tubing Connections
Water Flow
