+GF+ Signet 4630 - Component Identification: Flow Cell

6
463X Chlorine Systems Manual

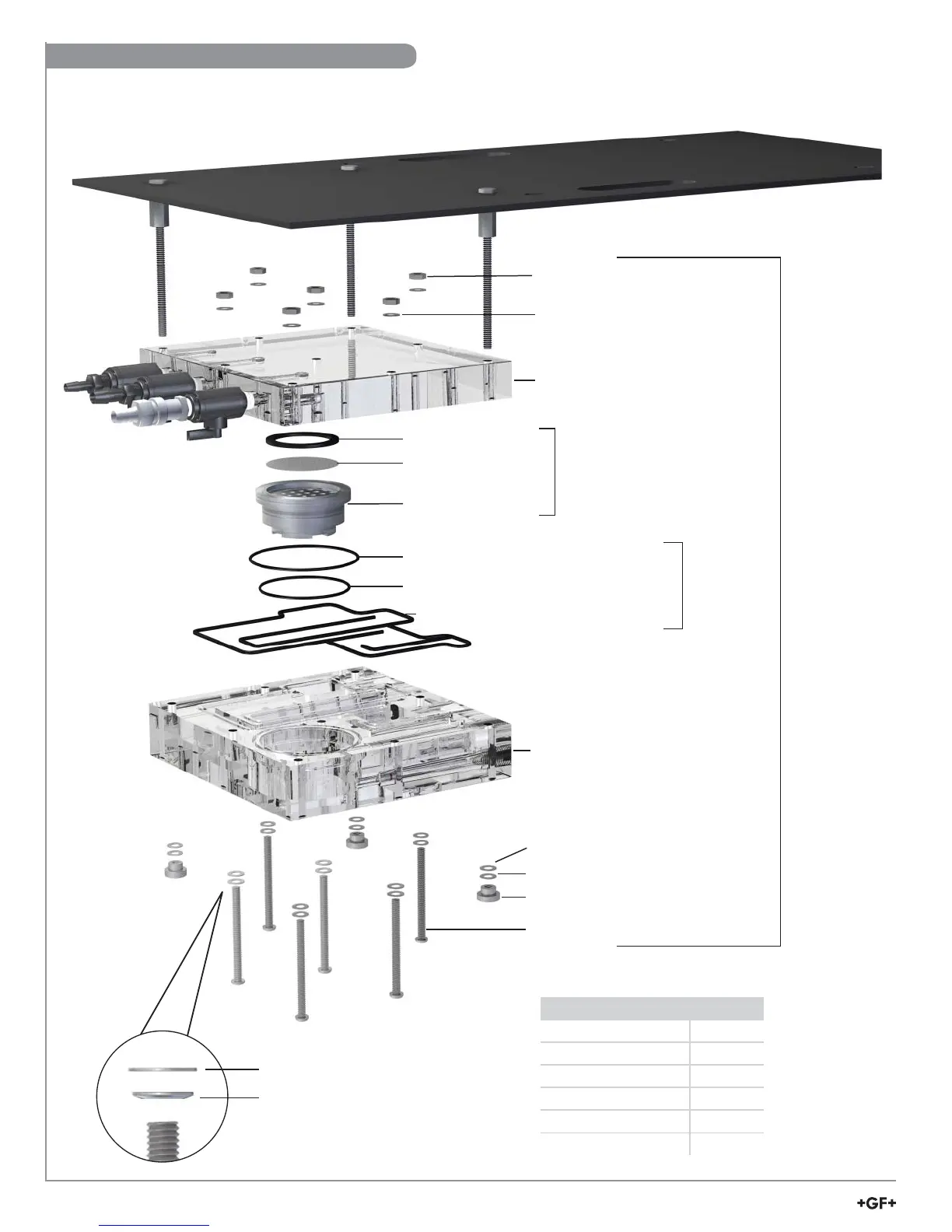

Flow cell front block
Disc spring
(2700-0003)*
Spacer ring
Stainless steel fi lter
Pressure regulator
Pressure regulator outer O-ring (large)
Pressure regulator outer O-ring (small)
Flow cell O-rings (4 segments)
Flat washer
Flat washer*
Disc spring (curved washer)
Knurled thumb nut (1700-2512)*
Flow cell bolt (2490-0554)
Included in kit 3-4630.390
Item Quantity
Flow cell nut 6
Flat washer 15
Disc spring 9
Knurled thumb nut 3
Flow cell bolt 6
Flow cell nut
Flat washer
Flow cell back block
Regulator Assembly
(3-4630.391)
(159 001 689)
Flow Cell
Rebuild Kit
(3-4630.390)
(159 001 688)
*Not included with
3-4630.392 (159 001 690)
3-4630.392
(159 001 690)
Component Identifi cation: Flow Cell
