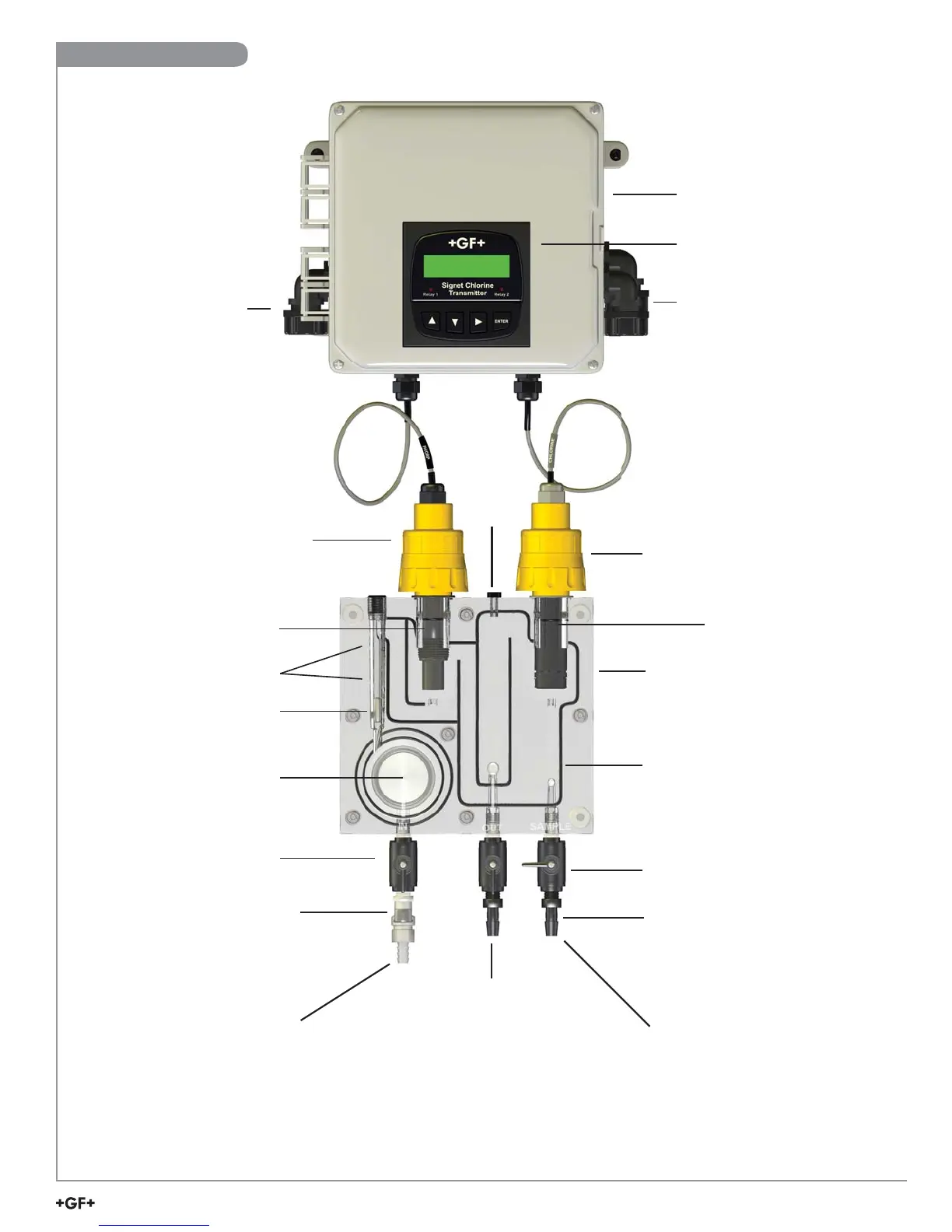

+GF+ Signet 4630 - Panel Assembly

5
463X Chlorine Systems Manual
Power cable conduit
Amperometric chlorine
sensor electronics
3-2650-7 (159 001 670)
Flow cell block
Flow cell O-rings
Vent
Cap
Output conduits
Transmitter
3-8630-3P (159 001 673)
Wiring enclosure
Flow rate indicator
Flow range limits
Flow regulator with strainer
Inlet port
Drain port
(3/8 inch hose)
Sampling port
pH sensor
electronics
3-2750-7 (159 001 671)
pH electrode
3-2724-00 (159 001 545)
Quick disconnect plug
(3/8 inch hose)
2000-3825*
Quick disconnect
2000-2525*
3/8" Hose barb
2000-3804*
3/8" Ball valve
4300-5225*
Chlorine electrode
3-2630-X (Free Chlorine)
3-2632-1 (Chlorine Dioxide)
* Contact factory for quote
Panel Assembly
