463X Chlorine Systems Manual
Electrode Range: The electrodes must match the type and range of chlorine concentration to be measured.
Flow Rate: The electrodes must have a stable and constant fl ow of water past its membrane for accurate measurement.
When the sensor is installed in the Flow Cell Block 3-4630.392 (159 001 690), the fl ow rate range is controlled by the internal
fl ow regulator and the fl ow rate is reduced to 30.24 to 45.36 LPH (8 to 12 US gph).
Sensor Conditioning: A new chlorine electrode requires conditioning of up to 4 hours with the electrode powered on and
chlorinated water fl owing across the membrane to generate a stable reading. Subsequent start-ups can require an electrode
conditioning of up to 2 hours.
The maximum allowable operating pressure must be
less than 1 bar (15 psi). Higher pressures will damage
the electrodes.
The electrodes should not be used in water containing
surfactants, oils, organic chlorine or stabilizers such as
cyanuric acid.
CAUTION!
1 Follow instructions carefully to avoid personal injury or damage to electrode.
2. Prior to installation or removal:
a. Disconnect fl ow through system.
b. Drain below sensor level.
3. Confi rm chemical compatibility before use.
4. Do not alter product construction.
These electrodes require the Signet 2650 Amperometric Electronics module to communicate with the Signet 8630-3P
Chlorine Transmitter.
Lubricate O-rings
with a non-petroleum
based, viscous lubricant
(grease) compatible with
the system.
Lubricate O-rings
with a non-petroleum
based, viscous lubricant
(grease) compatible with
the system.

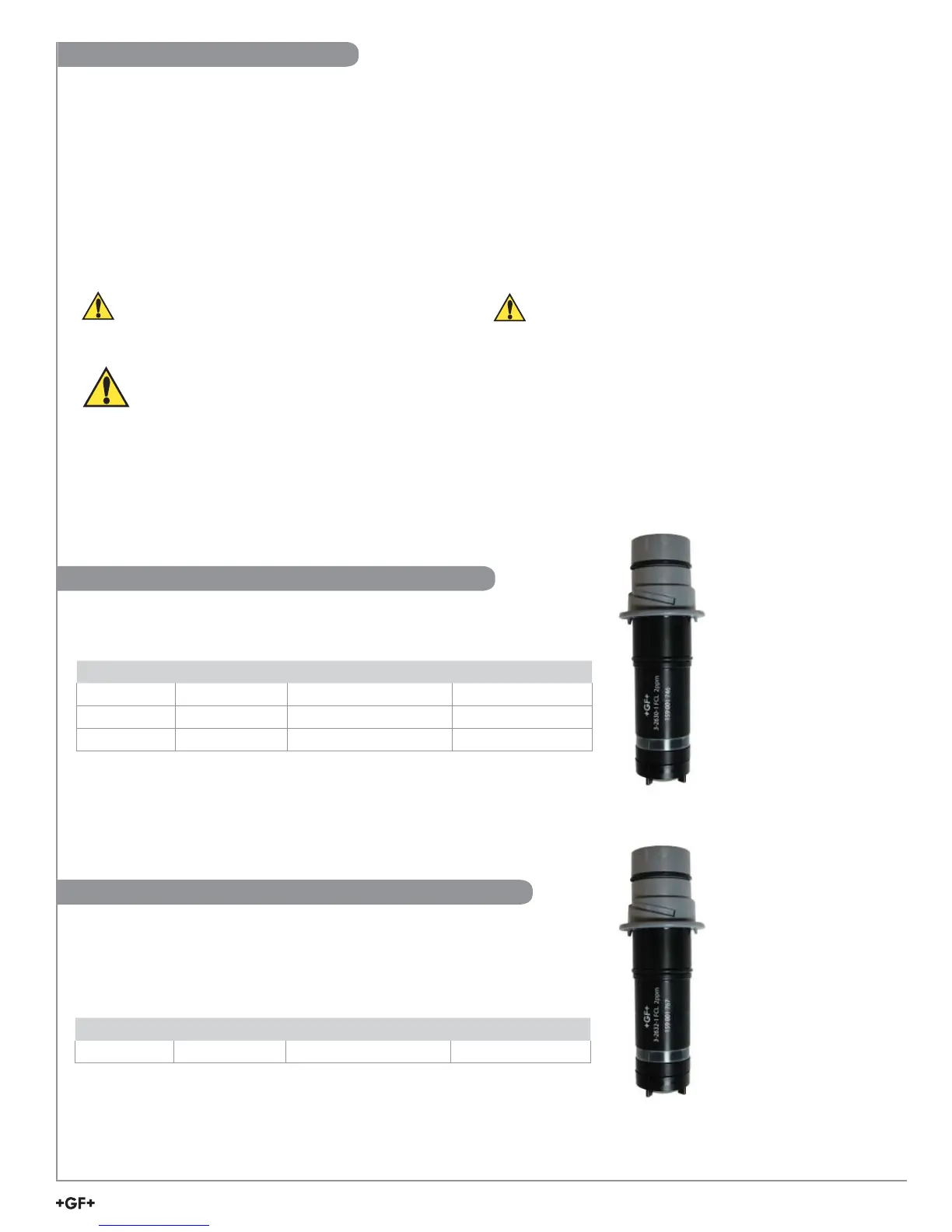

Chlorine Electrode Overview
Mfr. Part No. Code Chlorine Range Chlorine Type
3-2630-1 159 001 746 0 to 2 ppm (mg/L)
Free chlorine
3-2630-2 159 001 662 0 to 5 ppm (mg/L) Free chlorine
3-2630-3 159 001 747 0 to 20 ppm (mg/L) Free chlorine
The Signet 2630 Amperometric Chlorine Electrodes are designed to measure
free chlorine in ranges of 0 to 2 ppm, 0 to 5 ppm or 0 to 20 ppm.
2630 Amperometric Chlorine Electrodes
The Signet 2632 Amperometric Chlorine Dioxide Electrode is designed to measure
chlorine dioxide (ClO
2
) in a range of 0 to 2 ppm.
The Signet 2632 Amperometric Chlorine Dioxide Electrode has an integrated
temperature element for automatic temperature compensation.
Mfr. Part No. Code Chlorine Range Chlorine Type
3-2632-1 159 001 767 0 to 2 ppm (mg/L)
Chlorine Dioxide
2632 Amperometric Chlorine Dioxide Electrodes
