+GF+ Signet 4630 - Flow Cell Assembly

35
463X Chlorine Systems Manual
WARNING! Do not over tighten fl ow cell bolts. Maximum torque is 8.1 Nm (72 Lb-In).
Over tightening the bolts can damage the fl ow cell.
Do not over-tighten the bolts in an attempt to stop a leak.
Tighten the nut just enough to hold
the block together and keep the
O-rings in place.
6
Tighten the bolts in three passes to
specifi cation.
8
Install the nut and washers.
5
Install the remaining bolts, washers
and nuts.
7
Install the assembled pressure
regulator and the two round
O-rings into the fl ow cell.
1
Install the four O-ring segments.
2
Insert the center bolt into the block.
3
4
Align and place the back block onto
the fl ow cell. Check to be sure that
the O-rings are seated correctly.
9
Install the fl ow cell on the panel.
Screw on the thumb nuts fi nger tight.
DO NOT use tools on the thumb nuts.
NOTE: It is recommended that an anti-seizing compound appropriate for
the application be used during the reassembling of the fl ow cell.

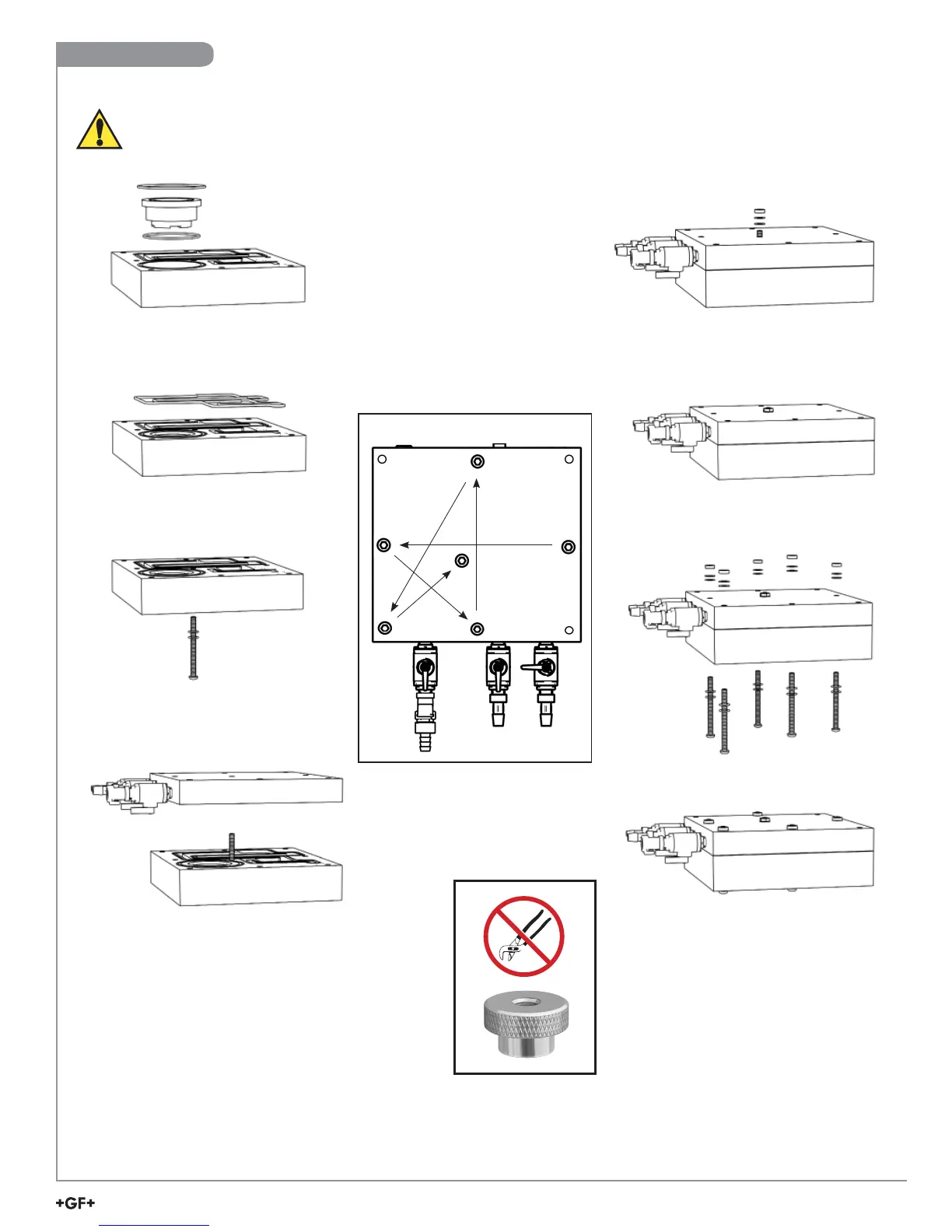

Flow Cell Assembly
1
2
3
6
5
Torque
8.1 Nm
(72 Lb-In)
MAX!
4
Tighten bolts in 3 passes
