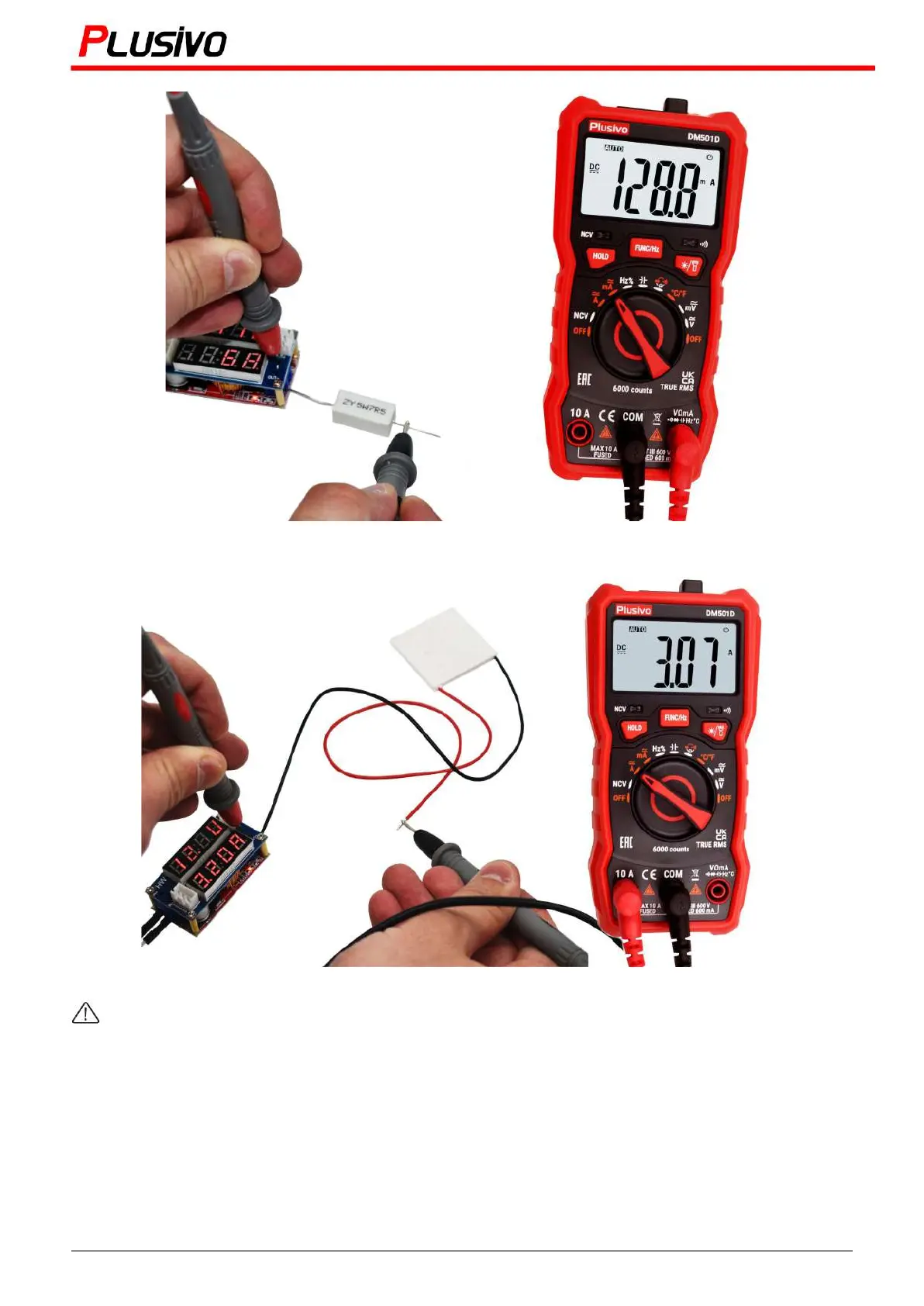

In this set-up, the red probe is inserted in the 10A socket for DC current setting. The reading is 3.07 A.
Do not attempt to measure current in a circuit when the voltage between open circuit
voltage and ground is greater than 250 V. If the fuse blows during measurement, you may
damage the meter or injure yourself. To avoid damage to the meter or test equipment, use the
correct input jack, function mechanism, and range before making measurements. When the test
pen is connected to the current input jack, do not connect the other end of the test pen in parallel
to any circuit.
