Plusivo DM501D - 1. Introduction; Overview of the DM501 D Multimeter

8.3.2 Kirchhoff's Voltage Law 27
8.3.3 Example 27
8.4 Shunt Resistor 31
8.4.1 Example 32
8.5 Choosing the Right Resistor for an LED 34
8.5.1 Example 35
8.6 Measuring Internal Resistance of a Battery 37
8.6.1 Example 38
8.7 Testing Some Components Using Multimeter 40
8.7.1 Potentiometer Test 40
8.7.2 BJT Transistor Test 42
Introduction
In this guide, you are going to learn how to measure AC/DC voltage, AC/DC current, resistance,
capacitance, diode temperature and continuity test using DM501D 6000 Counts Autoranging T-RMS
Digital Multimeter. We are going to study some basic concepts like Ohm's Law and Kirchhoff's Law.
Please note that product color may slightly vary due to photographic lighting sources or your monitor
settings.

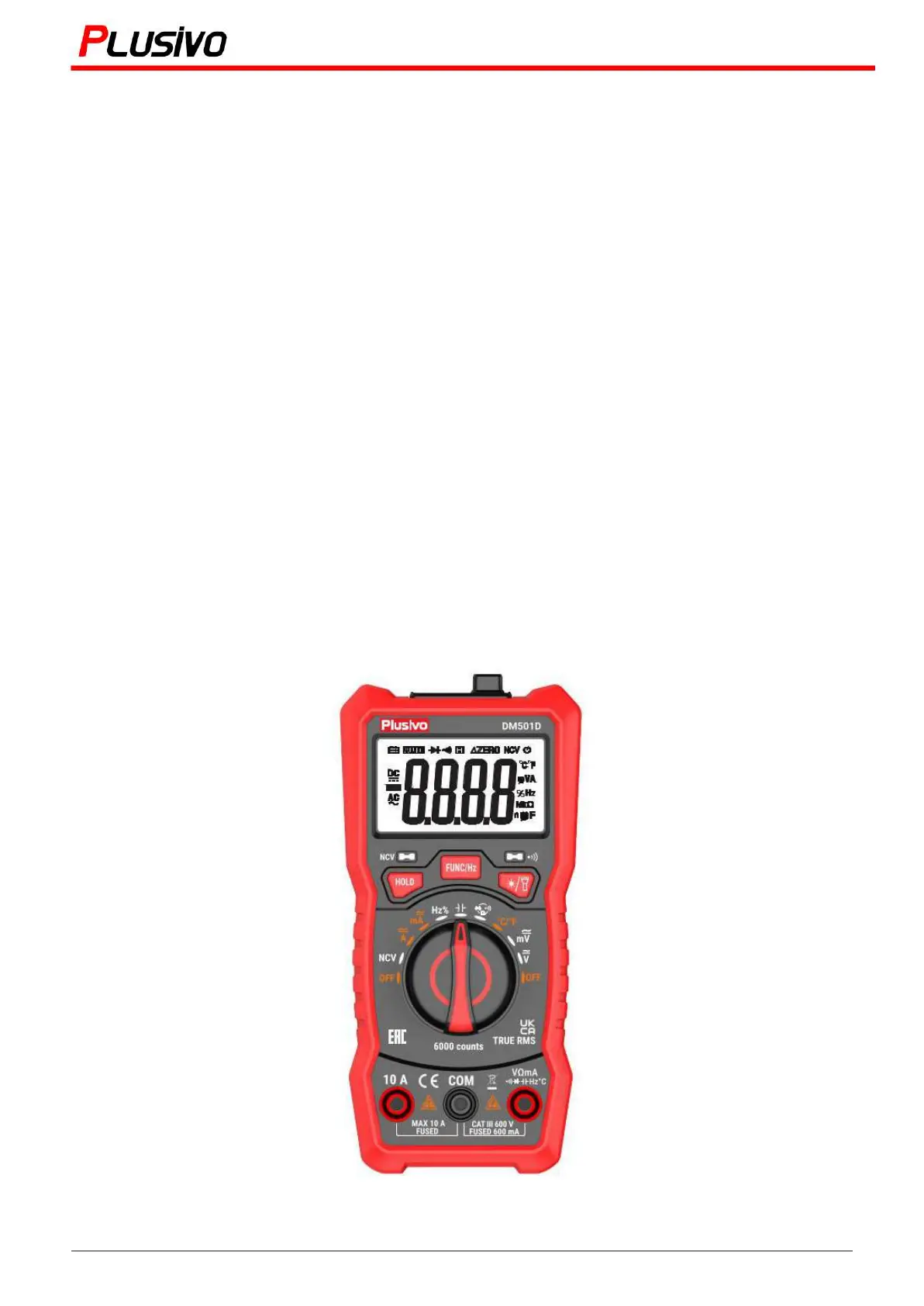

1. Overview
2
