8.7 Testing Some Components Using Multimeter
In this section, we are going to test some components using a multimeter.
8.7.1 Potentiometer Test

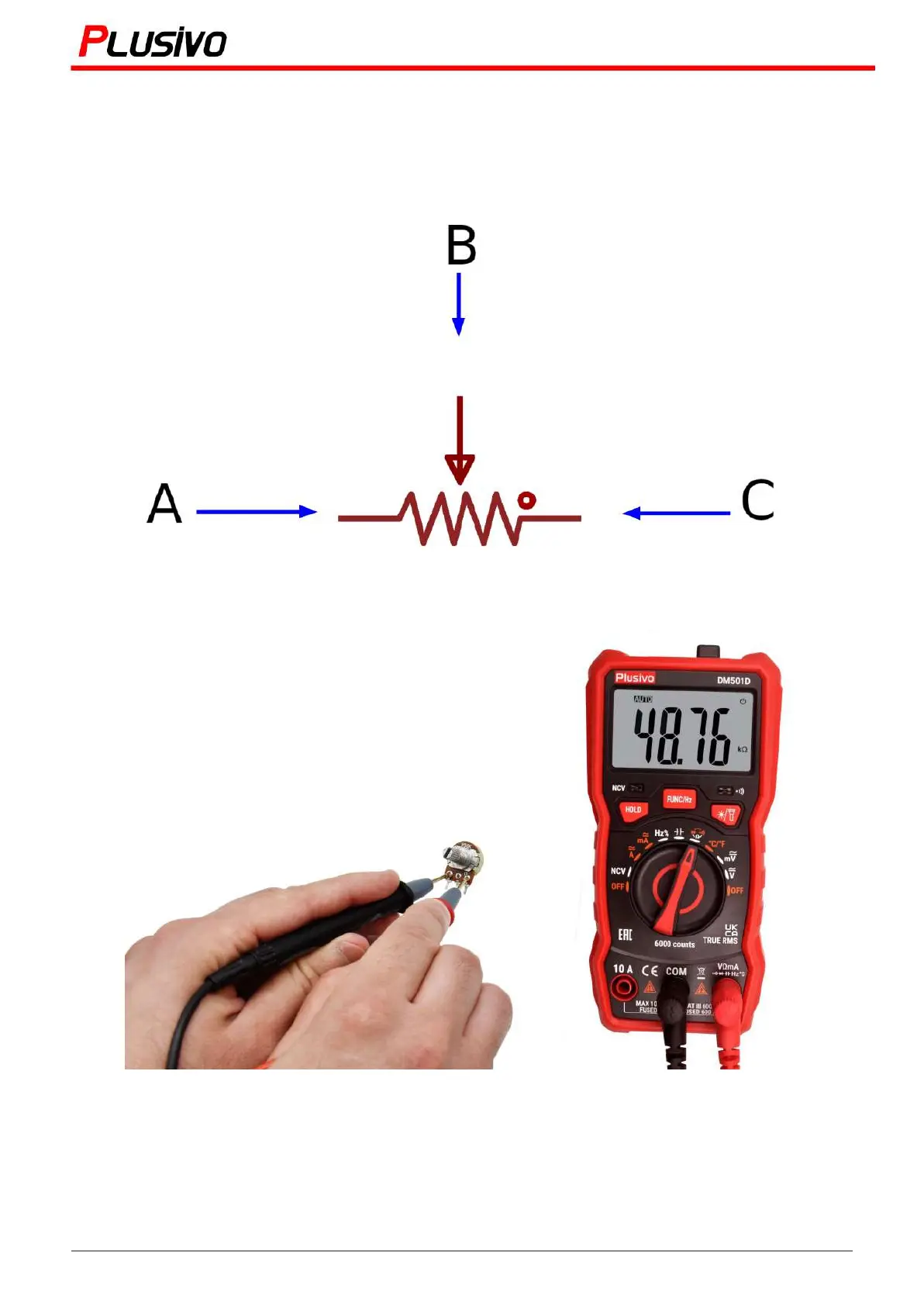

First, we need to measure the resistance between A - C.
The measured resistance in this figure is 48.76 kΩ.
And then we measure the resistance between A - B and B - C, the sum of the two values must be
equal to A - C.
