If we want to use the current to calculate the power.

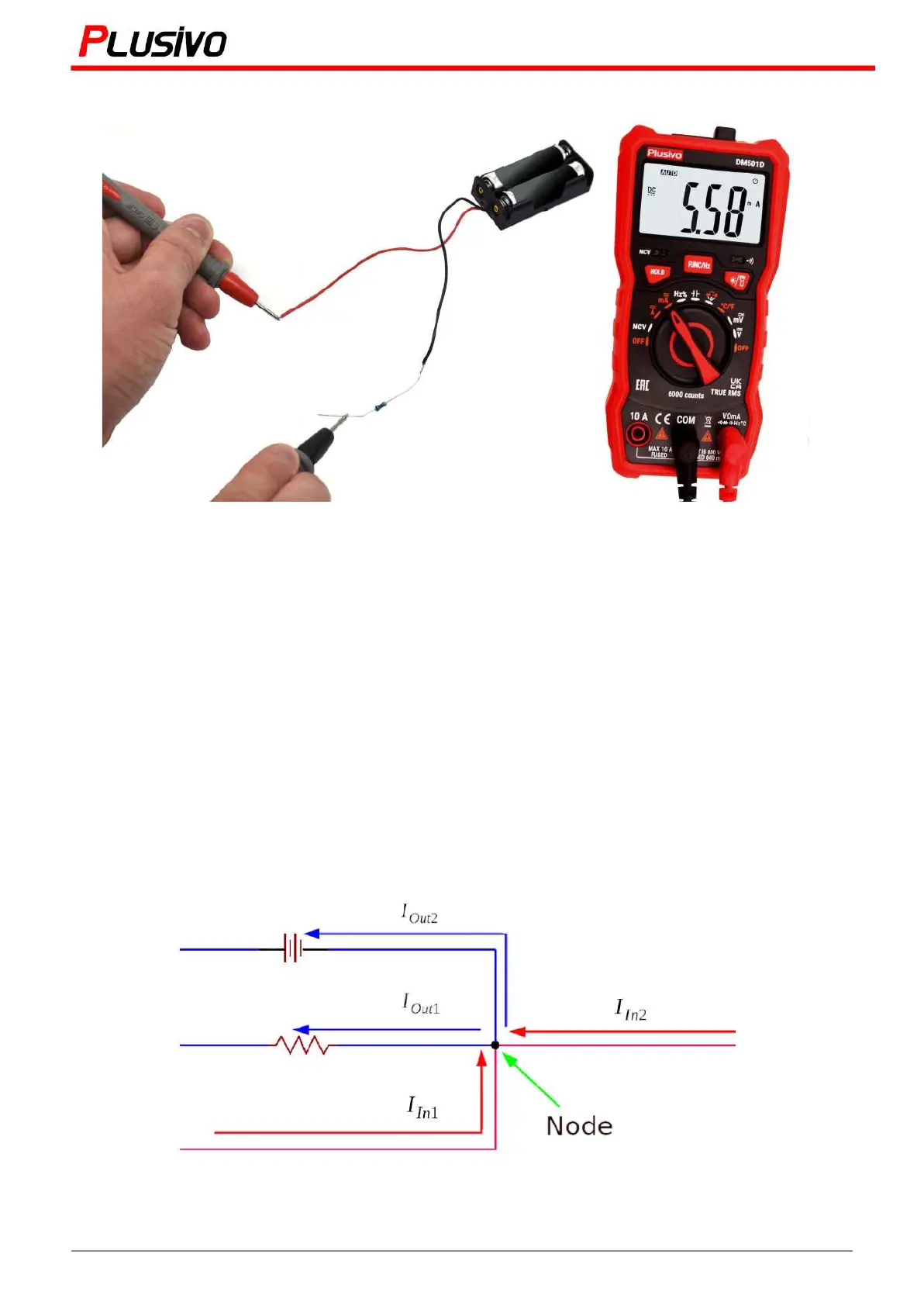

The measured current in this figure is 5.58 mA
We can use the first formula which is:
𝑃 = 𝐼 · 𝑉
5. 58 𝑚𝐴 · 3. 085 𝑉 = 0. 0172𝑊 = 17. 2 𝑚𝑊
And the second formula which is:
𝑃 = 𝐼
2
· 𝑅
(5. 58 𝑚𝐴)
2
· 510 Ω = 0. 0159 𝑊 = 15. 9 𝑚𝑊
So all the result of the calculations using the formulas above are near each other’s value: 17.3 mW, 17.2
mW, 15.9 mW
8.3 Kirchhoff's Law
8.3.1 Kirchhoff's Current Law
Currents entering the node equals currents leaving the node.
𝐼
𝐼𝑛1
+ 𝐼
𝐼𝑛2
= 𝐼
𝑂𝑢𝑡1
+ 𝐼
𝑂𝑢𝑡2
26
