PNP

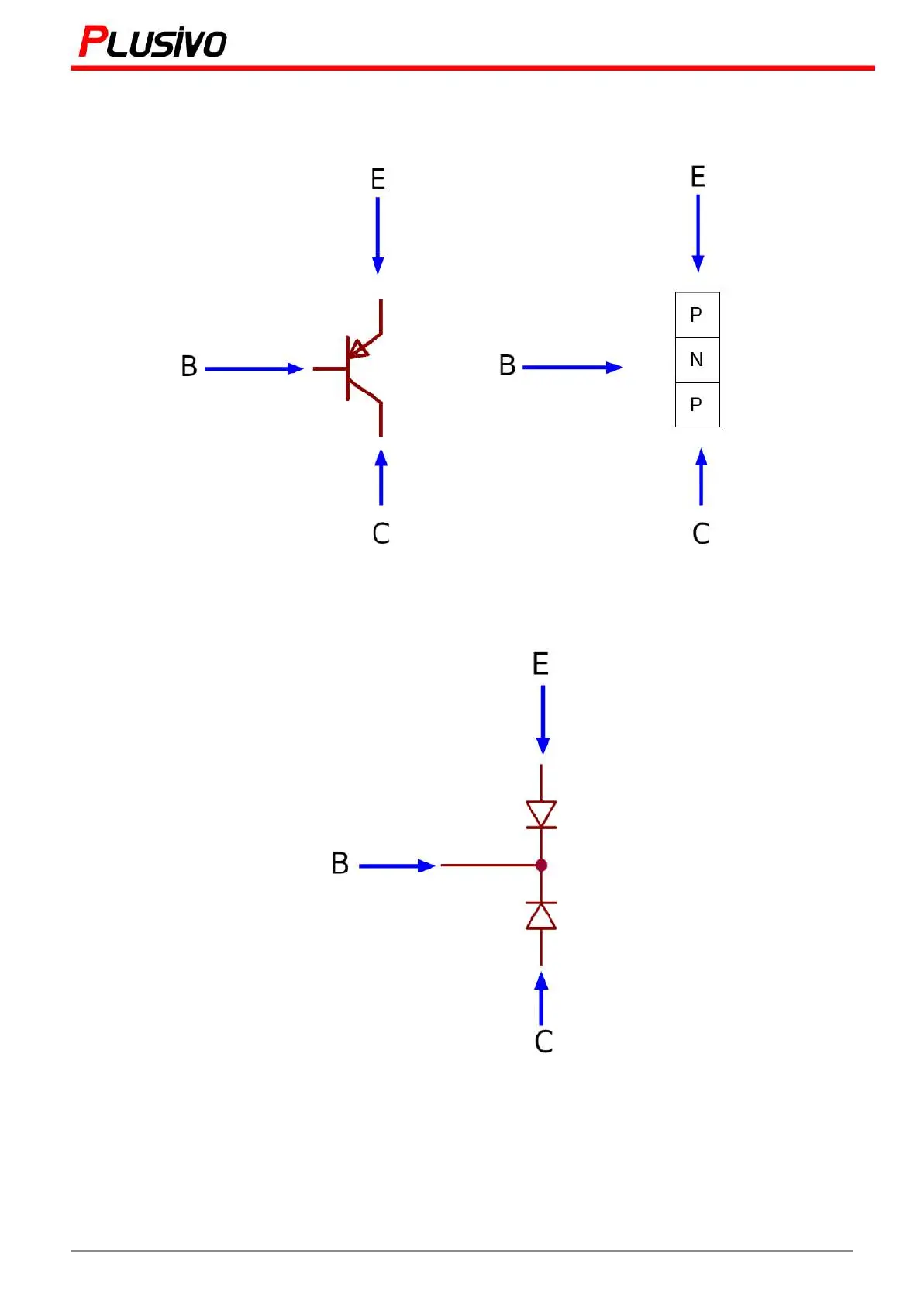

The PNP type consists of two P-Regions separated by N-Region, so we can suppose a diode
between B - C and between B - E.
Now, we can test the PNP transistor as 2 diodes. To test the first diode (B - E), we need to
connect the black probe to the cathode which is the base of the transistor and connect the red probe to
the anode which is the emitter of the transistor.
