Getting Started
Setup
Install & Remove Battery
Remove the battery
1. Press and hold left & right battery lock simultaneously to release the battery
2. Pull up the bottom of the battery to remove from the device and release the battery lock

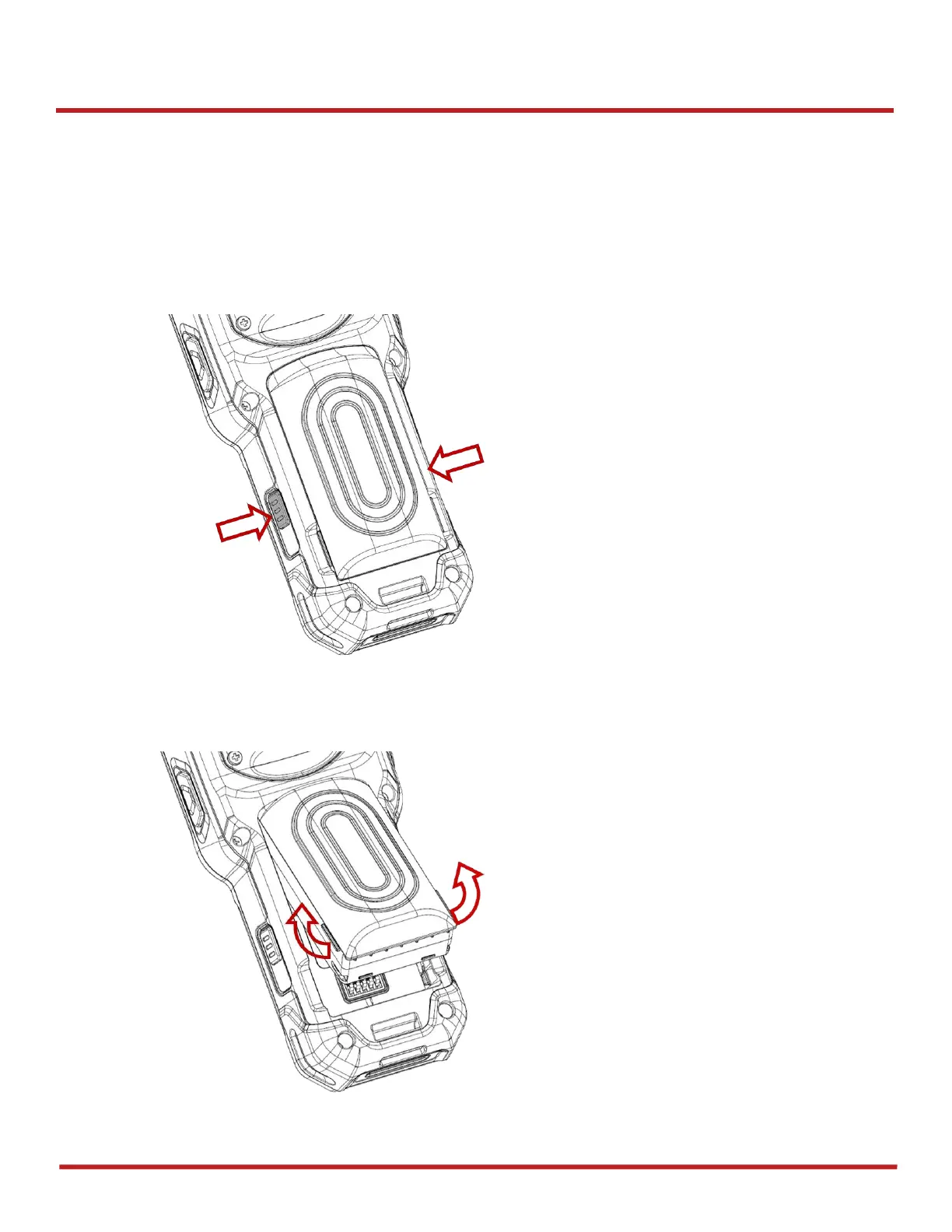

Figure 3 Press battery lock
Figure 4 Remove battery
