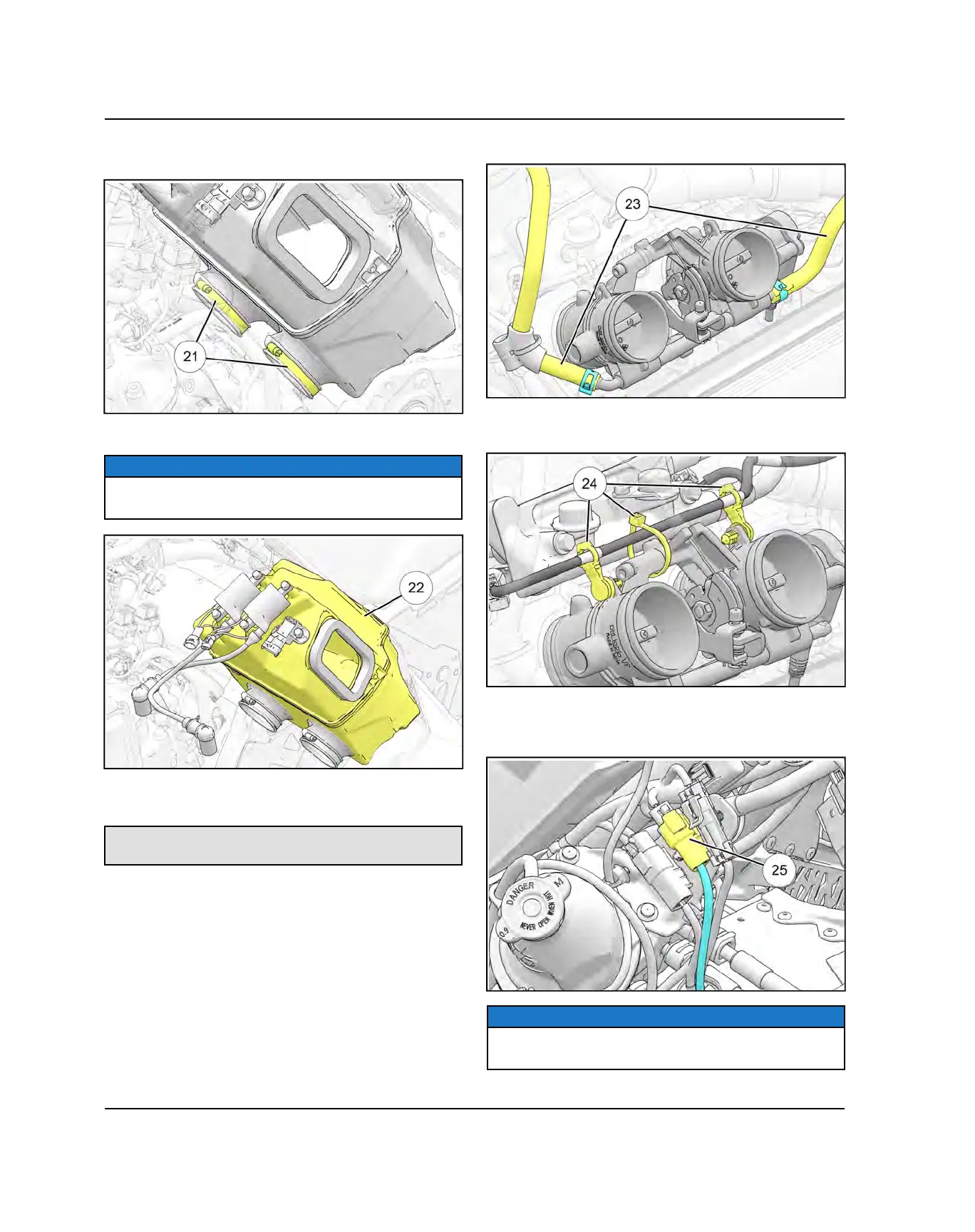

19.Loosen the two gear clamps
2!
securing the air box to
the throttle body.
20.Carefully remove the air box
2@
.
NOTICE
If removal is difficult and additional space is needed,
remove the ignition coils from the air box assembly.
21.Pinch-off the throttle body coolant hoses using hose
pincher tools.
Hose Pincher:
PU-45149
22.Remove the hoses
2#
from the throttle body.
23.Cut the cable ties
2$
that secure the fuel injector
harness to the throttle body.
24.Disconnect the TPS sensor connector
2%
from the
wiring harness and remove the connector from the
connector placement bracket.
NOTICE
Note the cable tie positions and TPS harness routing
prior to disconnecting the TPS.
FUEL SYSTEM
