2. Separate the edges of the brush and undo
the tabs. Remove the worn brush (see
Figure 17).

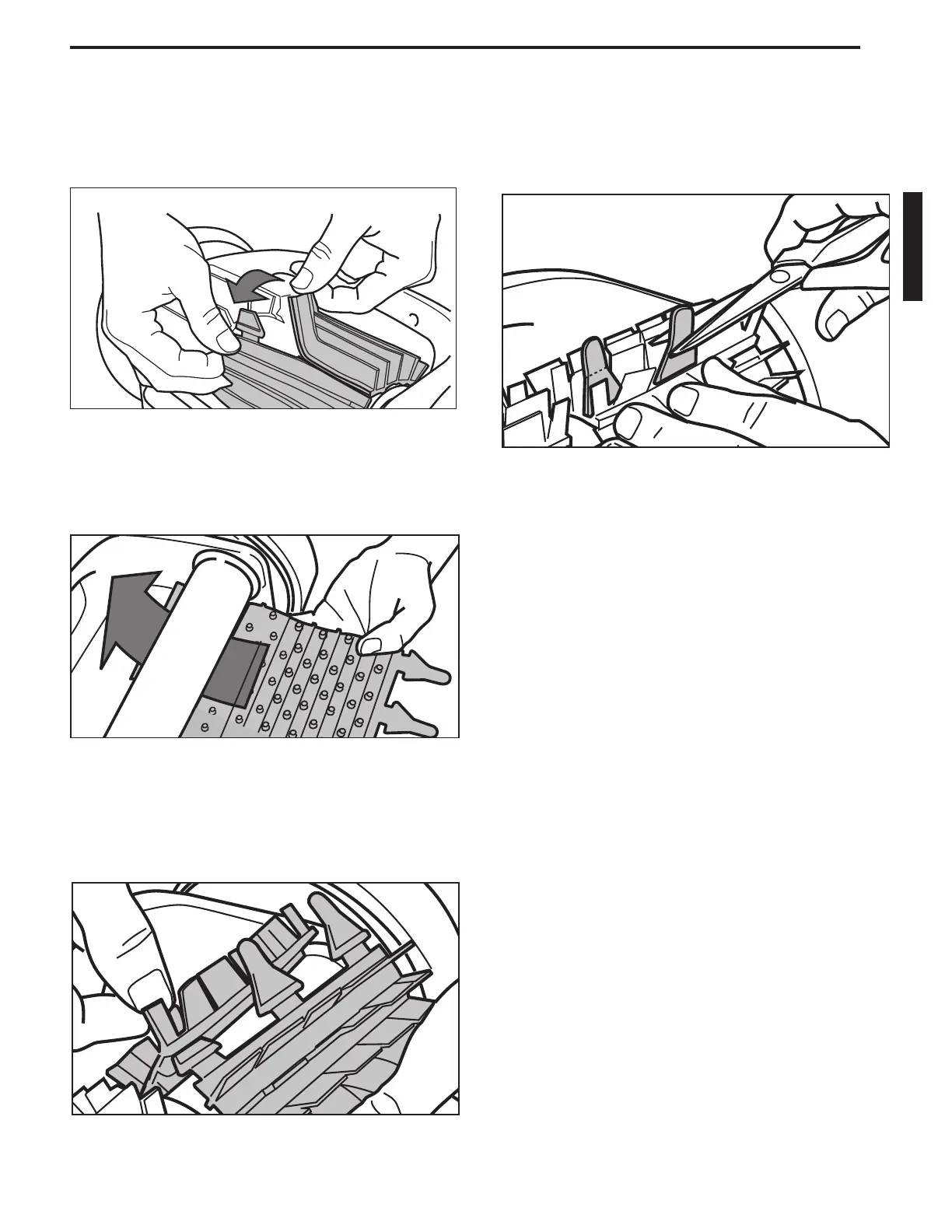

Figure 17. Undo the Tabs of the Brush
3. Position the new brush underneath the
roller with the bristles facing downwards
(see Figure 18).
Figure 18. Position the New Brush on Roller
4. Thread each tab into the slot provided and
gently feed it through until the heel comes
out at the other side of the slot.(Figure 19).
4
Figure 19. Pull Tabs Through Each Slot
5. Use a pair of scissors to cut the tabs 3/4
inch from the heel so that they are no higher
than the cleaning blade (Figure 20).
Figure 20. Cut Tabs
13
