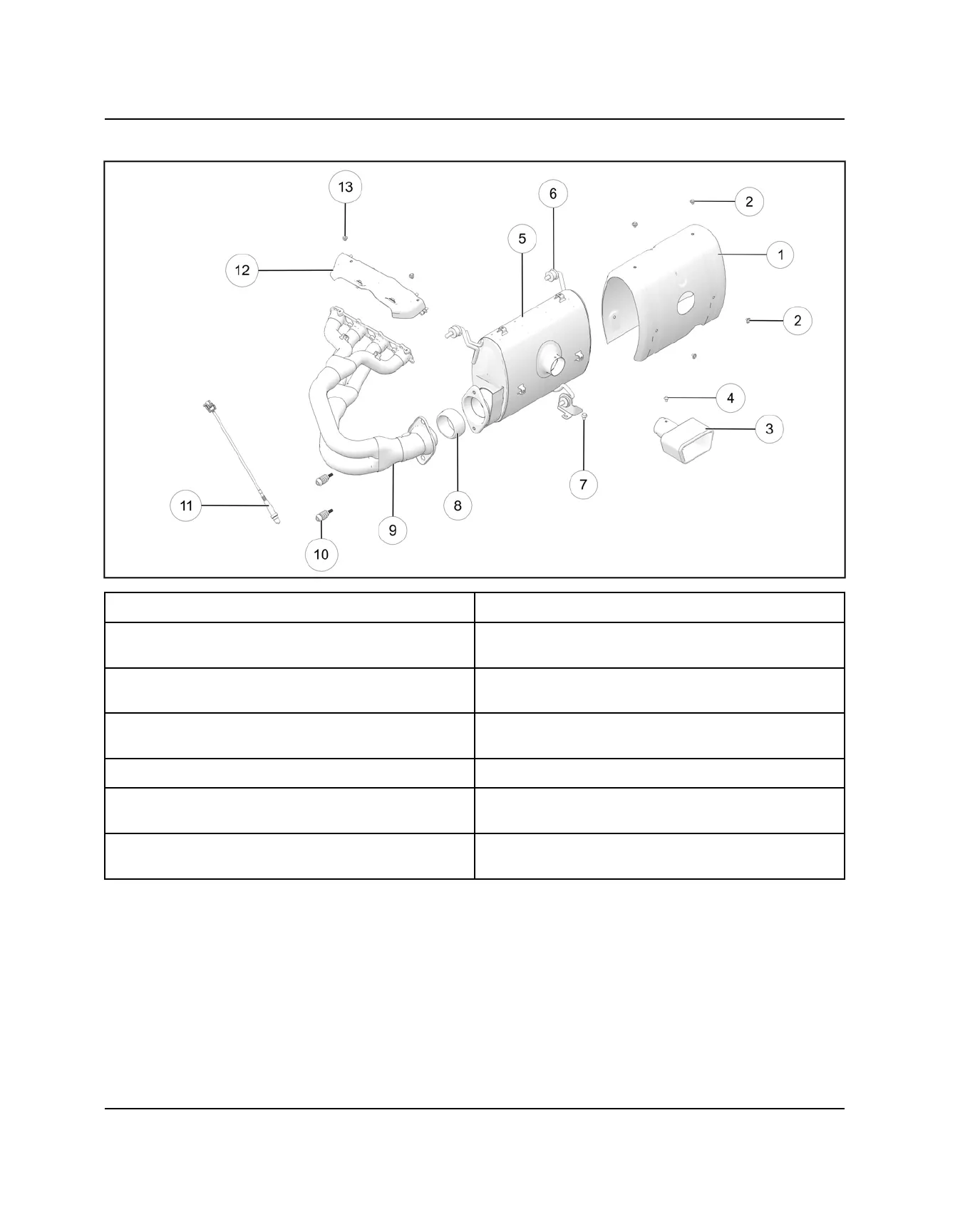

EXHAUST ASSEMBLY VIEW
q
Muffler Heat Shield
i
Exhaust Pipe Gasket
w
Muffler Heat Shield Fastener
71 in-lbs (8 Nm)
o
Headpipe
e
Spark Arrestor
a
Headpipe-to-Muffler Fastener
18 ft-lbs (25 Nm)
r
Spark Arrestor Fastener
8 ft-lbs (11 Nm)
s
Oxygen Sensor
30 ft-lbs (40 Nm)
t
Muffler
d
Headpipe Heat Shield
y
Muffler Isolator
f
Headpipe Heat Shield Fastener
71 in-lbs (8 Nm)
u
Lower Isolator Mounting Fastener
18 ft-lbs (25 Nm)
