9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
8.17
4. Install engine mounting bracket and torque fasteners
to specification.
TORQUE
Engine Isolator Mounting Fasteners:
33 ft-lbs (45 Nm)
Engine Isolator Bracket Fasteners:
18 ft-lbs (25 Nm)
Lower Engine Mount Fasteners:
52 ft-lbs (70 Nm)

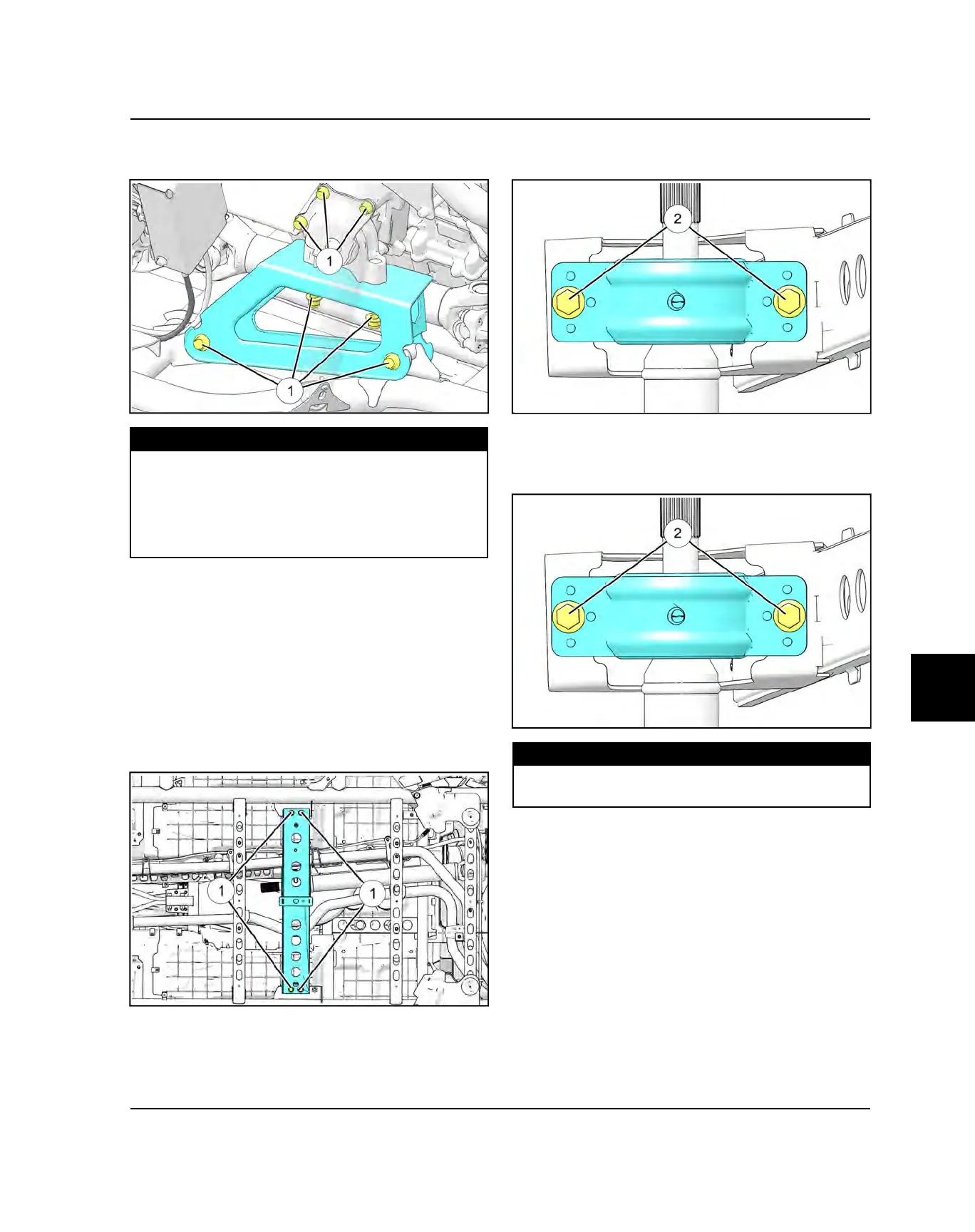

INTERMEDIATE PROP SHAFT
REPLACEMENT (4-SEAT)
REMOVAL
1. Remove front prop shaft. See Front Prop Shaft
Replacement outlined in this chapter.
2. Remove front, middle, and rear skid plates.
3. Remove four fasteners
q
retaining intermediate prop
shaft and bearing to the frame.
4. Remove prop shaft slip yoke from the transmission
and remove prop shaft out the bottom of the vehicle.
5. Remove two fasteners
w
and remove prop shaft and
bearing from the mounting bracket.
INSTALLATION
1. Install bearing onto mounting bracket. Torque
fasteners to specification.
TORQUE
Prop Shaft Bearing Fasteners:
33 ft-lbs (45 Nm)
2. Install prop shaft yoke into transmission output shaft.
FINAL DRIVE
