Polaris RZR PRO R 4 - Fuel Lines; Fuel System Assembly View

5.10
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
FUEL LINES

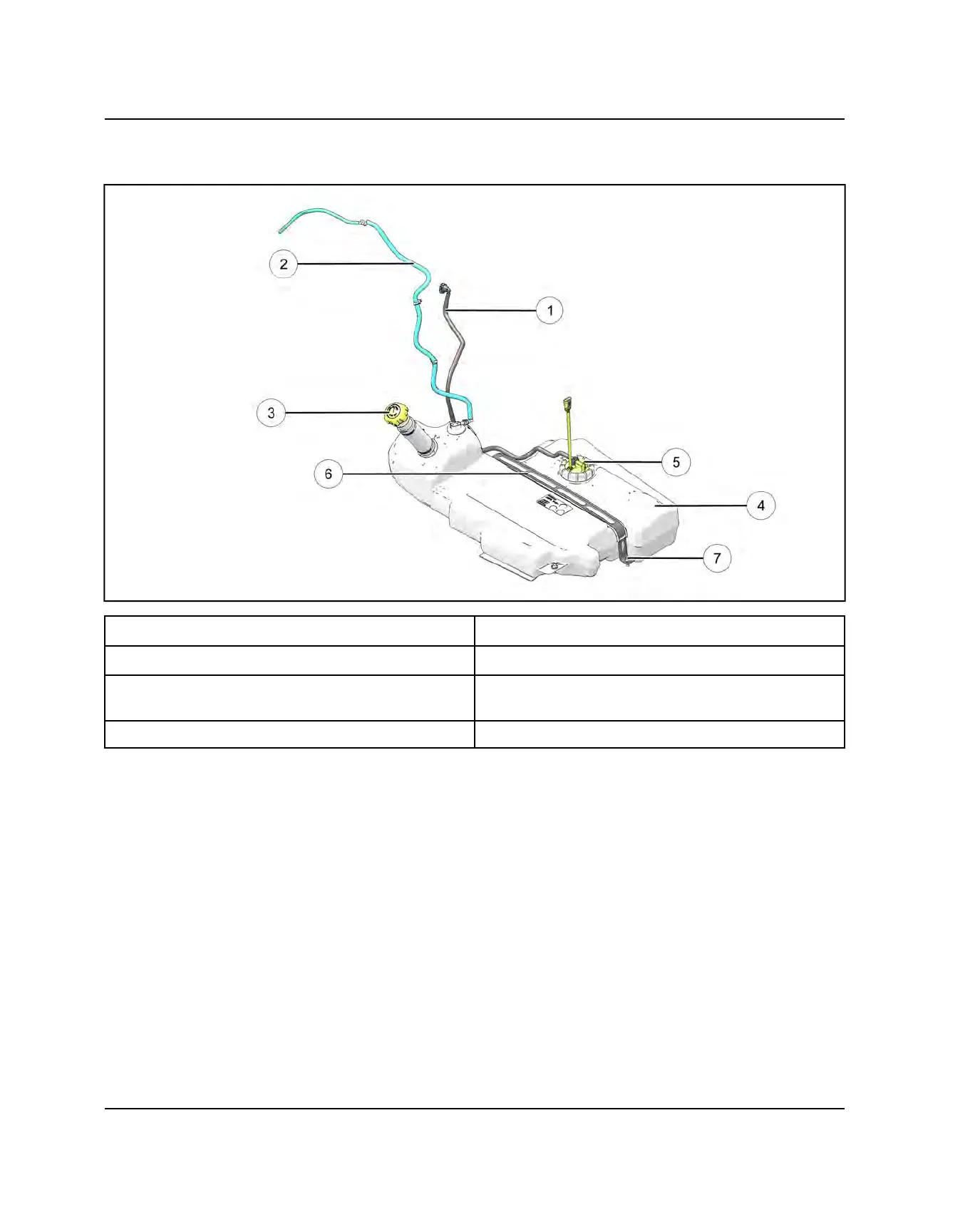

FUEL SYSTEM ASSEMBLY VIEW
q
Fuel Supply Line
t
Fuel Pump Assembly
w
Fuel Vent Line
y
Fuel Tank Strap
e
Fuel Cap
u
Fuel Tank Strap Fasteners
15 ft-lbs (20 Nm)
r
Fuel Tank
EFI / FUEL SYSTEM
