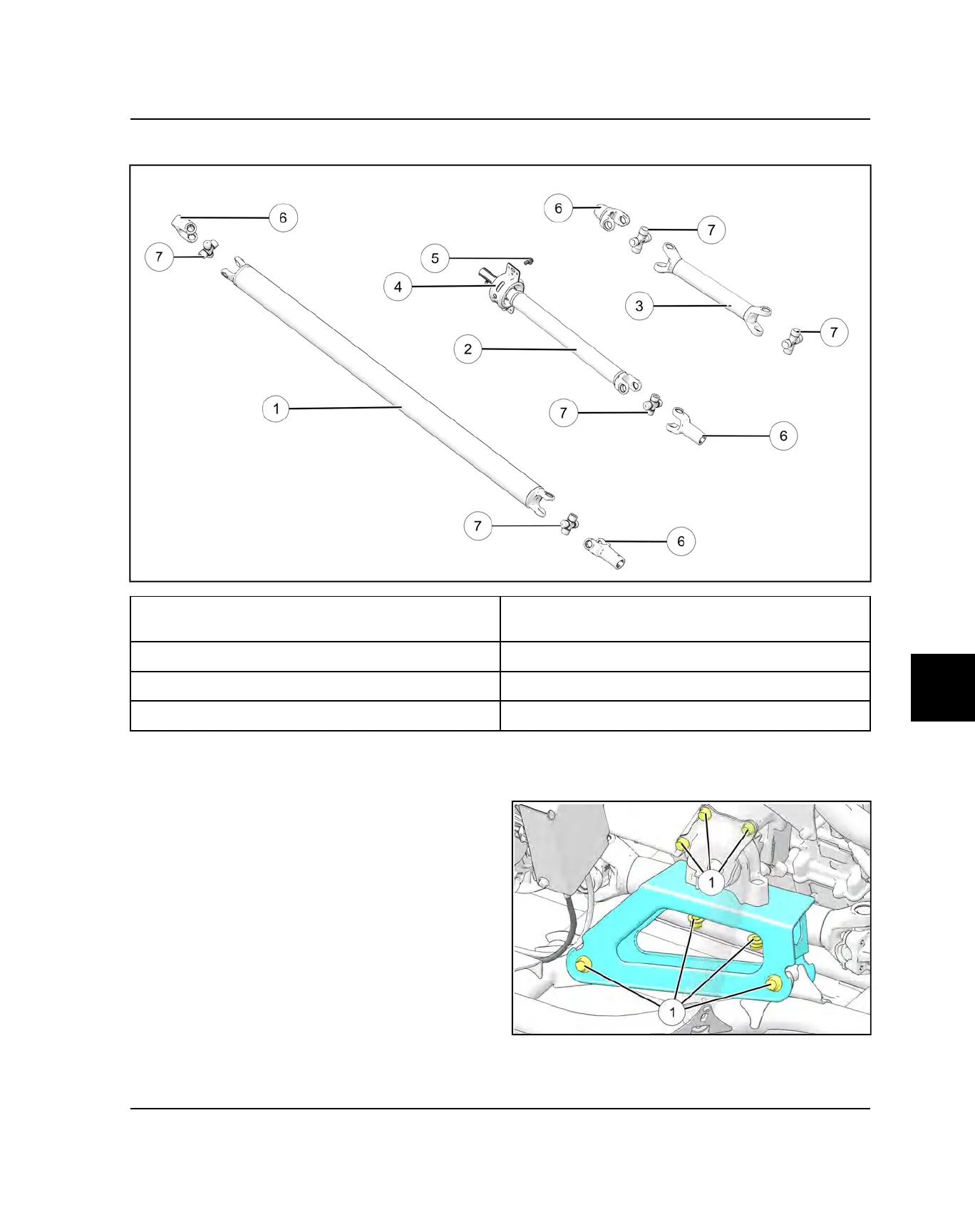

PROP SHAFT ASSEMBLY VIEW (4-SEAT)
q
Front Prop Shaft
t
Support Bearing Fasteners
33 ft-lbs (45 Nm)
w
Intermediate Prop Shaft
y
Slip Yoke
e
Rear Prop Shaft
u
Cross and Bearing
r
Support Bearing
REAR PROP SHAFT REPLACEMENT
REMOVAL
1. Park vehicle on a flat, level surface.
2. Remove seven fasteners
q
and remove engine
mounting bracket.
FINAL DRIVE
