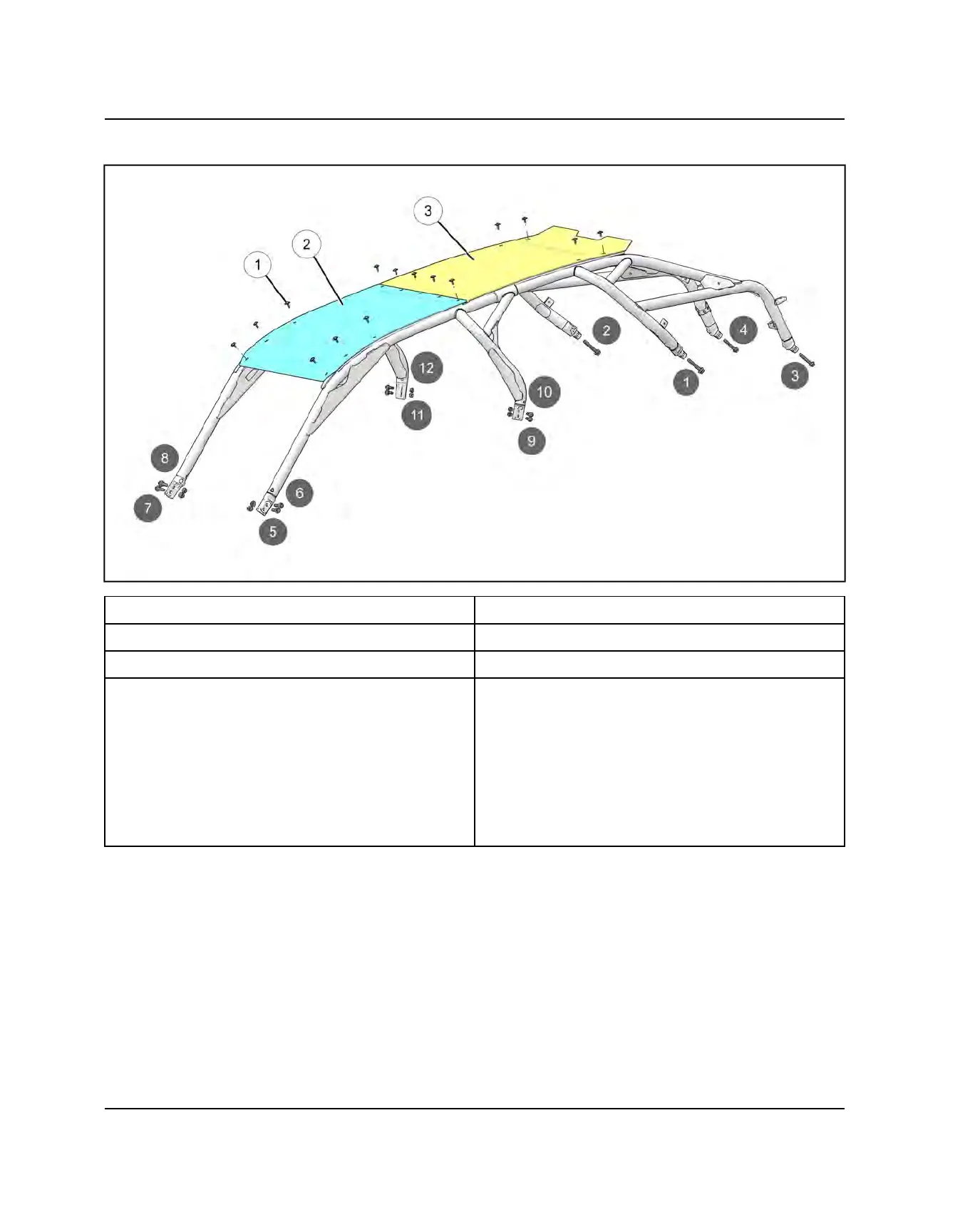

CAB FRAME ASSEMBLY (4-SEAT)
q
Roof Fastener
11 ft-lbs (15 Nm)
w
Front Roof
—
e
Rear Roof
—
ROPS Assembly
Follow the ROPS Torque sequence:
1. C-Pillar Fasteners
qq
-
ww
: 148 ft-lbs (200 Nm)
2. D-Pillar Fasteners
ee
-
rr
: 89 ft-lbs (120 Nm)
3. A-Pillar Fasteners
tt
-
ii
: 89 ft-lbs (120 Nm)
4. B-Pillar Fasteners
oo
-
dd
: 44 ft-lbs (60 Nm)
5. Confirm C-Pillar Fastener Torque: 148 ft-lbs (200
Nm)
