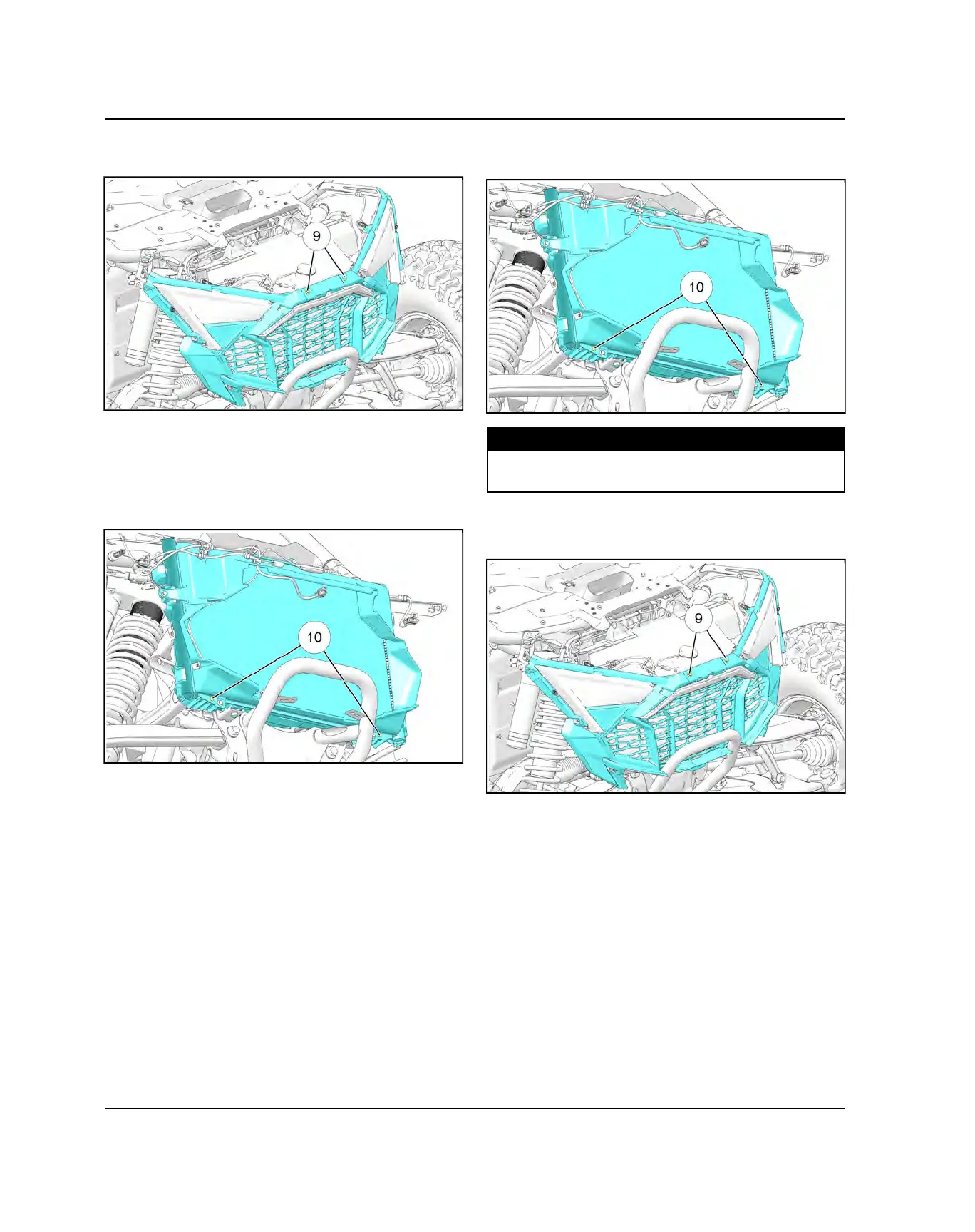

9. Remove two push-pins
o
and remove the front
fascia.
10.Disconnect coolant hoses from the radiator.
11. Disconnect electrical connector from cooling fan
assembly.
12.Remove two fasteners
a
retaining the radiator
assembly.
13.Disconnect wire routing clips from the radiator
assembly. Note location of these clips for installation.
14.Remove radiator, cooling fan and radiator shroud as
an assembly.
15.Remove push-pins to separate radiator from fan and
shroud assemblies.
INSTALLATION
1. Install new radiator onto cooling fan and shroud, and
install assembly mounting push-pins.
2. Mount radiator assembly onto vehicle chassis and
install radiator hoses.
3. Route and install wiring harness onto radiator
assembly.
4. Install two fasteners to mount assembly. Torque
fasteners to specification.
TORQUE
Radiator Mounting Fasteners:
9 ft-lbs (12 Nm)
5. Connect cooling fan electrical connector.
6. Install front fascia and install two mounting push-pins.
7. Install headlight and accent light electrical
connectors.
