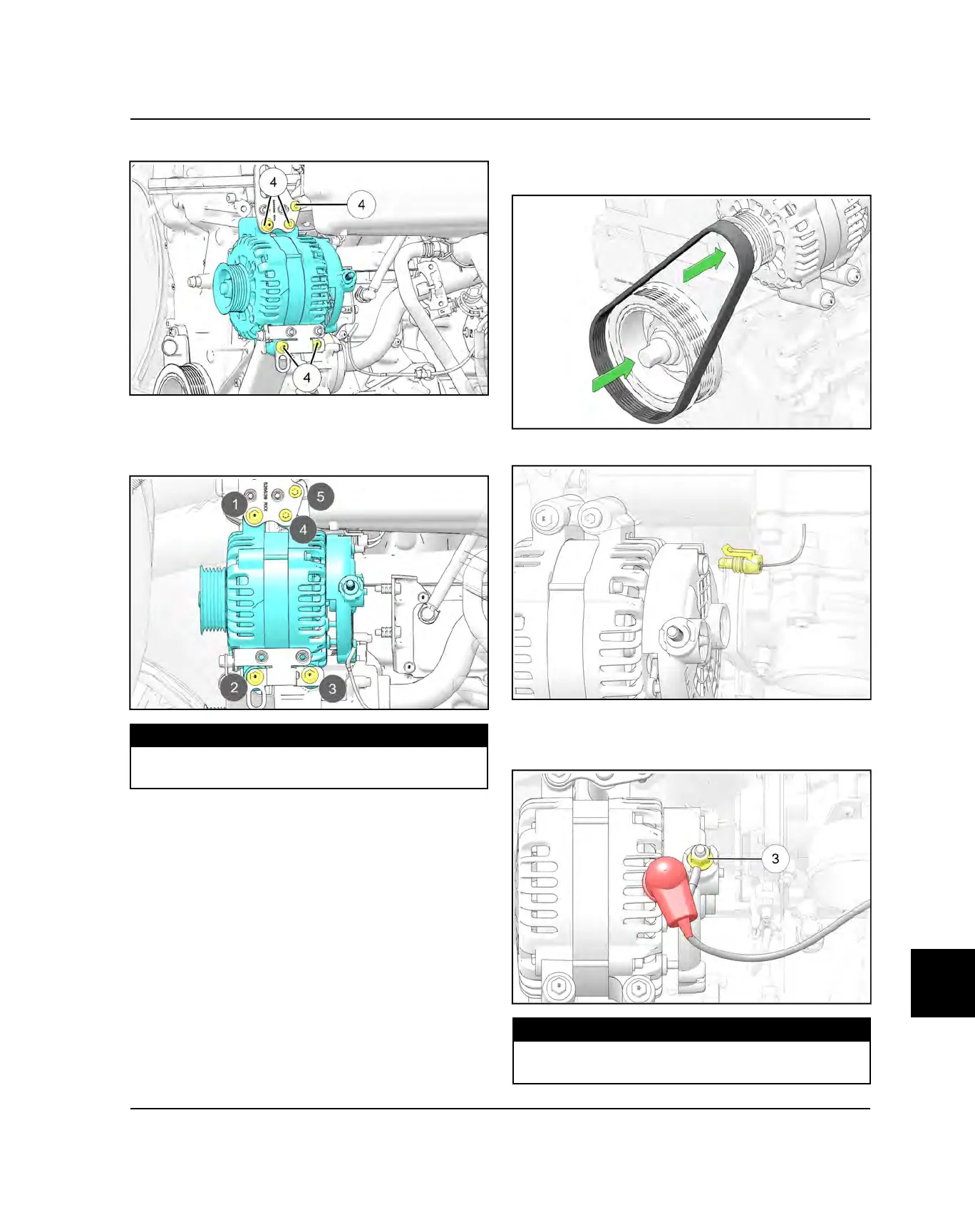

7. Remove five fasteners
r
and remove the alternator.
INSTALLATION
1. Install new alternator. Loosely install fasteners.
Torque fasteners to specification in sequence shown.
TORQUE
Alternator Mounting Fasteners:
15 ft-lbs (20 Nm)
2. Using a commercially-available stretch belt
installation tool, install a NEW stretch belt over the
alternator and balance pulleys.
3. Connect the alternator electrical connector.
4. Install the main charging lead to the alternator. Install
positive terminal nut
e
and torque to specification.
Cover the terminal nut with the red protective cap.
TORQUE
Alternator Terminal Nut:
84 in-lbs (9 N·m)
ELECTRICAL
