9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
3.25

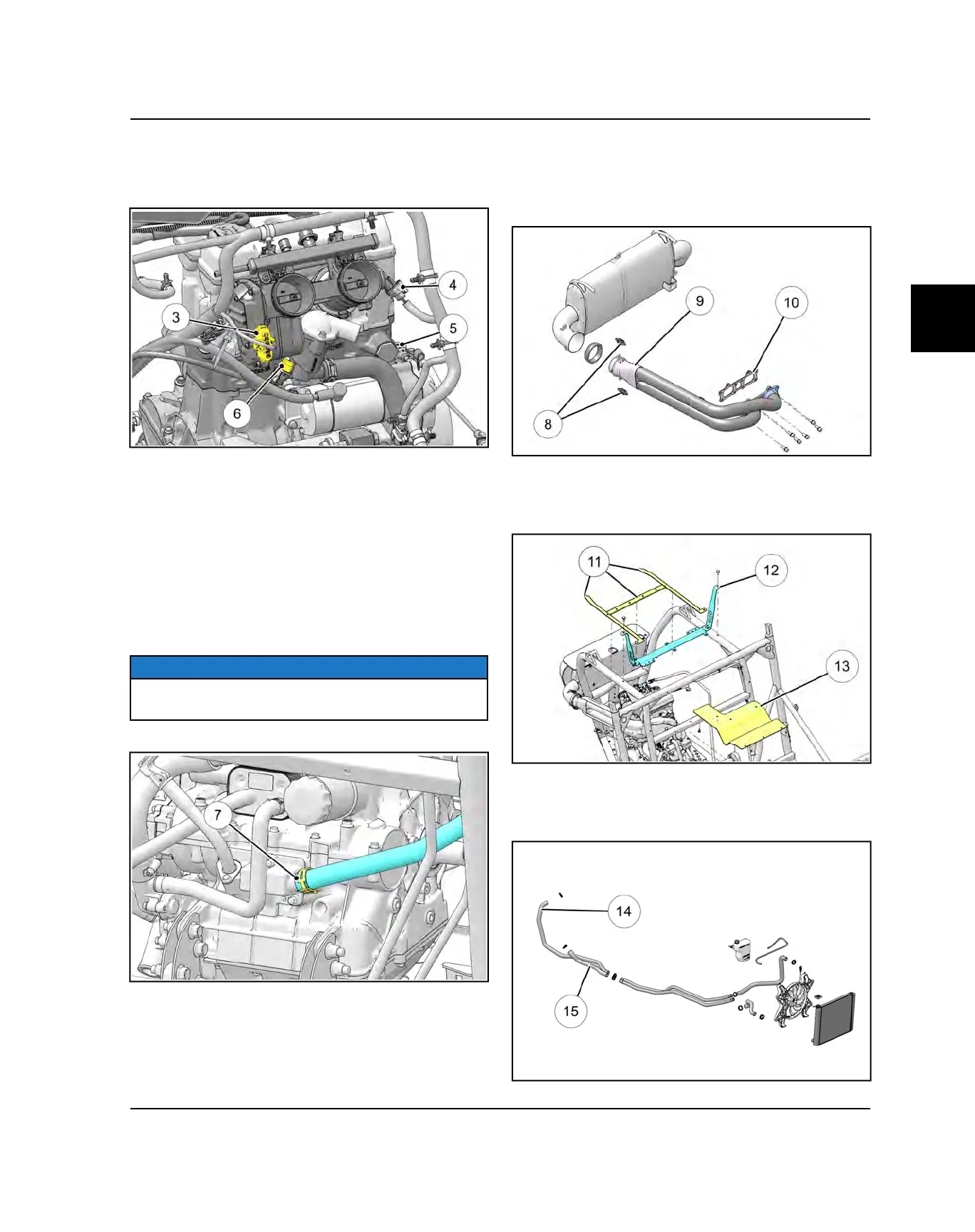

12. Disconnect the TMAP sensor
e
, fuel injector
harness leads
r
, CPS
t
, ECT sensor
y
, and
ignition coil harness lead. Remove wire ties retaining
harness to the fuel rail and rear cross member.
13. Disconnect the stator harness.
14. Remove (+) positive cable from the starter motor.
15. Remove (-) negative cable from the starter mounting
bolt.
16. Disconnect fuel lines and remove throttle body
assembly (See Chapter 4 – Fuel Line Removal /
Installation, page 4.24 Fuel Line Removal /
Installation, page 4.24Throttle Body Removal, page
4.40). Make note of line routing for installation.
17. Remove spark plug wires from the engine.
NOTE
The spark plug wires are marked with MAG and PTO.
Note during installation procedure.
18. Remove the breather hose
u
from the crankcase.
19. Remove the six fasteners that attach the exhaust
head pipe to the engine. Remove the two exhaust
springs
i
that attach the head pipe
o
to the muffler.
Remove exhaust head pipe towards the front of the
vehicle. Discard exhaust gaskets
a
.
20. Remove the four fasteners retaining the box support
s
and the two fasteners retaining the box support
bracket
d
. Remove the push rivet that attaches the
heat shield
f
to the rear cross member.
21. Place a suitable drain pan under the vehicle and
remove the thermostat housing coolant hose
g
and
the water pump coolant hose
h
from the engine.
Dispose of engine coolant properly.
