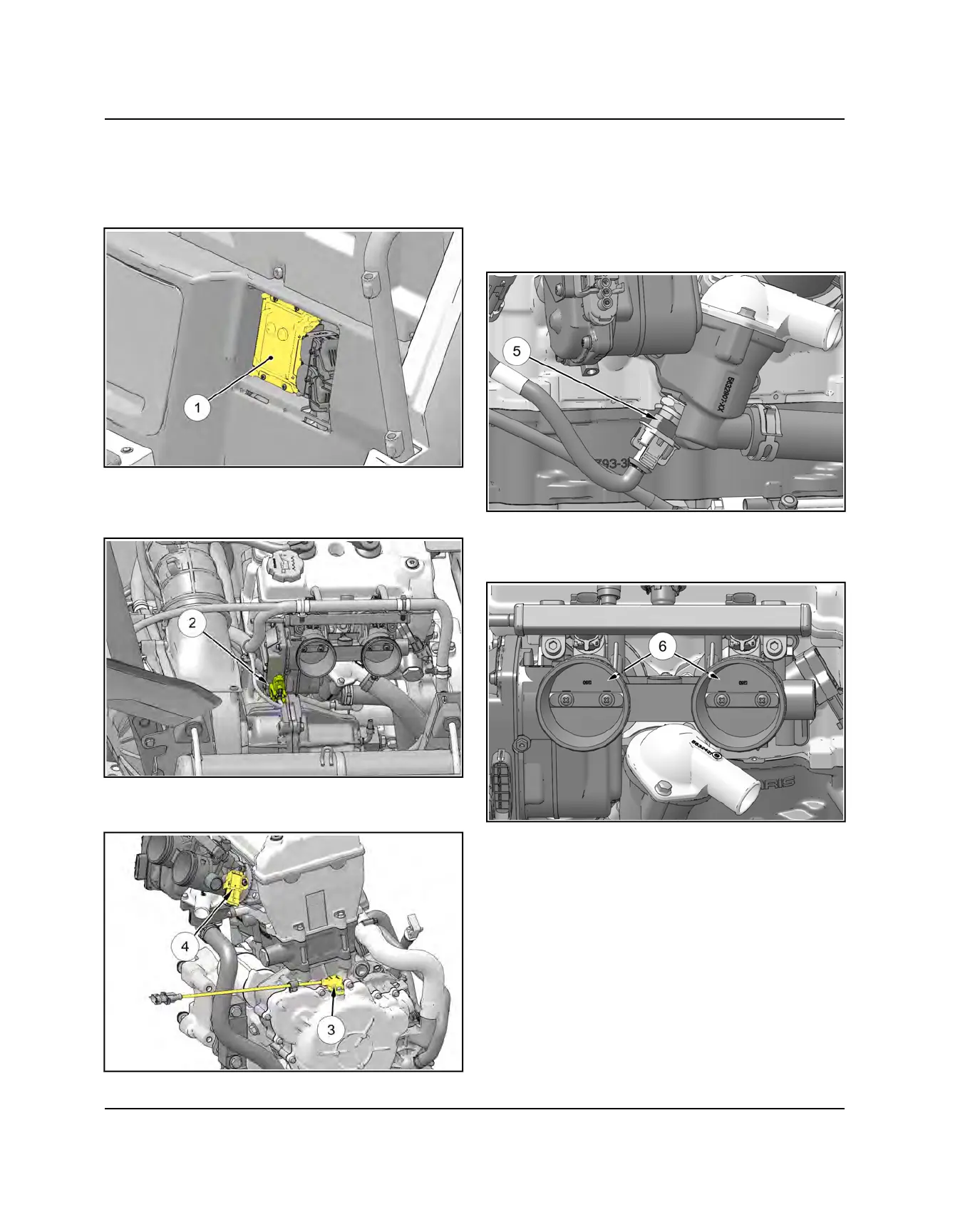

EFI SYSTEM COMPONENT LOCATIONS
• Electronic Control Unit (ECU)
q
Behind driver’s seat. Behind LR seat on RZR XP 4
1000.
• Electronic Throttle Control (ETC)
w
Located on the PTO side of the throttle body assembly.
• Crankshaft Position Sensor (CPS)
e
Located on top of the stator cover.
• Temperature and Manifold Absolute Pressure
(TMAP) Sensor
r
Located on the Mag side of the throttle body.
• Engine Coolant Temperature Sensor (ECT)
t
Located on the left side of the thermostat housing. The
sensor can be accessed with the air box assembly
removed.
• Dual Throttle Body Assembly
y
Located between the air box assembly and rubber
cylinder head adapters.
FUEL SYSTEM
