9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

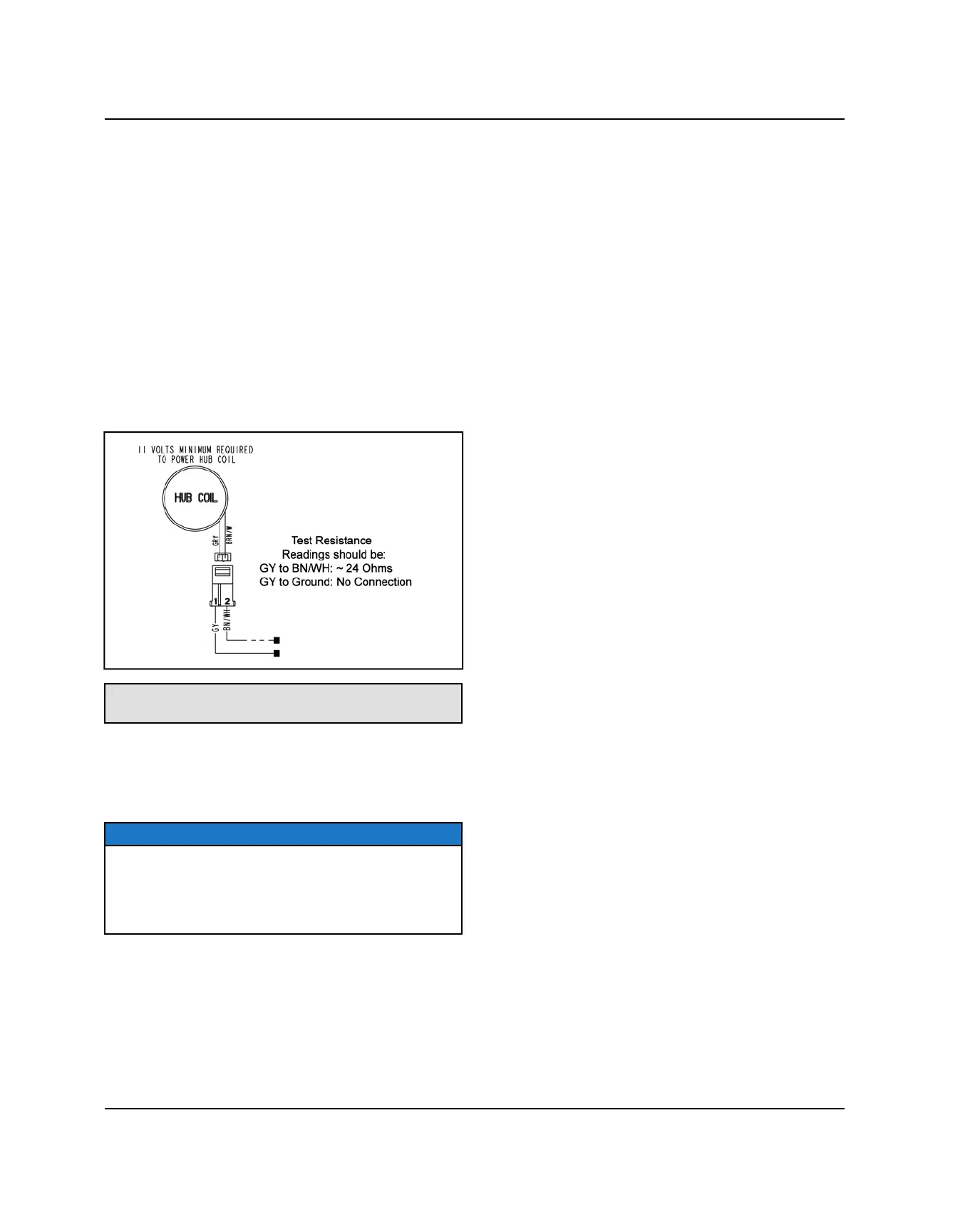

ALL WHEEL DRIVE COIL
OPERATION OVERVIEW
• When the key switch is “ON”, 12 VDC power is present
at the hub coil.
• When the AWD switch is “ON”, and if the criteria is
met, the Engine Controller provides a ground path
(brown/white wire). When this occurs the AWD icon
should display in the instrument cluster.
• The AWD system must be grounded to operate.
DIAGNOSING SYSTEM FAILURES
• Verify the AWD switch is functional and that a
minimum of 11 volts is present at the hub coil.
• Verify the AWD hub coil is functional. Test the AWD
hub coil using an ohm meter. See specifications below:
AWD Hub Coil Resistance:
24 Ω ± 5%
• Verify the wiring harness, wiring, connectors,
connector pins and grounds are undamaged, clean
and connect properly.
• Verify continuity of wire connections with a known
good volt/ohm meter.
NOTE
Verify all wires and wiring connections have been
tested properly with a known good volt/ohm meter
before suspecting a component failure. 80% of all
electrical issues are caused by bad/failed connections
and grounds.
ELECTRICAL
