Polaris RZR XP4 1000 2017 User Manual

6
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.3
SHIFT LEVER / CABLE

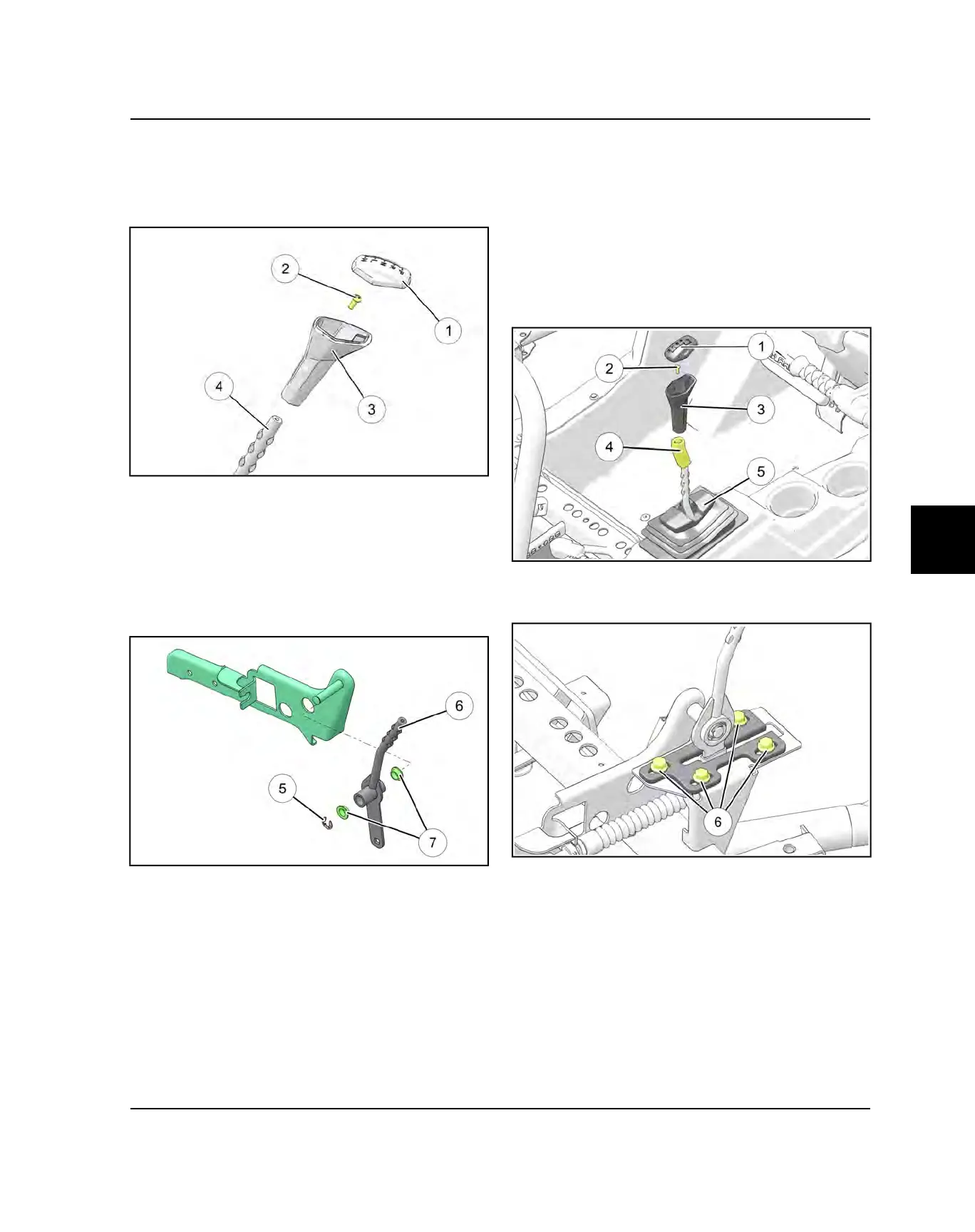

SHIFT LEVER REMOVAL
1. Remove the shift knob cover
q
, retaining screw
w
and shift knob
e
from the shift lever
r
.
2. Remove the fasteners retaining the center console
(see Body / Frame chapter). Remove the console
from the vehicle.
3. Remove the clip and washer retaining the shift cable
to the shift lever and disconnect the cable end from
the lever.
4. Remove the retaining ring
t
and slide the shift lever
y
off the mounting bracket and out from the frame.
5. Remove both bushings
u
from the shift lever and
service as needed.
SHIFT LEVER INSTALLATION
Perform the removal steps in reverse order to install the
gear shift lever (lever, cable, console, shift knob).
SHIFT LEVER REMOVAL (GOLD METALLIC
LE)
1. Remove the shift knob cover
q
, retaining screw
w
,
shift knob
e
and spacer
r
from the shifter shaft.
2. Remove the shifter boot
t
from the center console.
3. Remove the four fasteners
y
from the gated shift
plate.
TRANSMISSION
