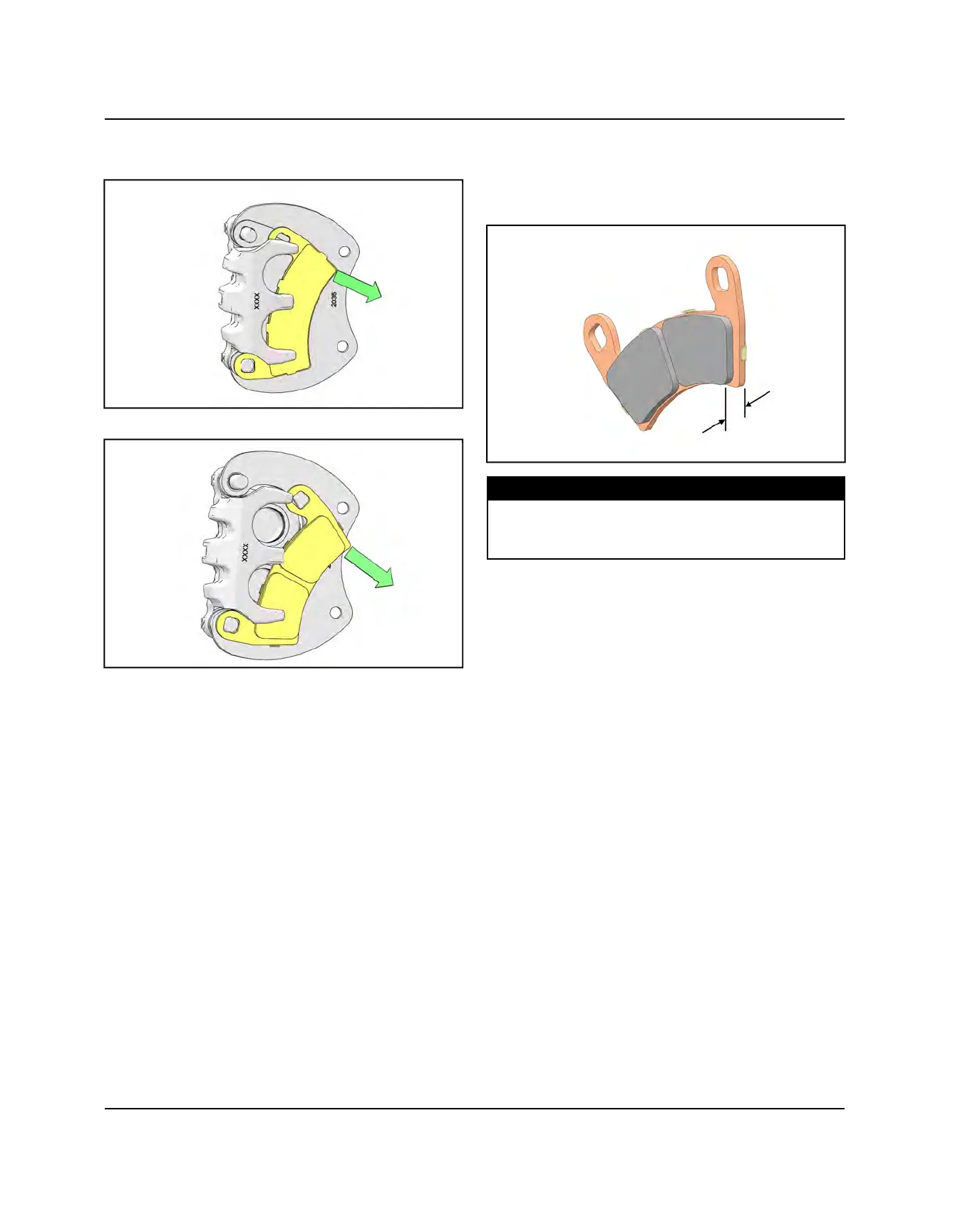

7. Push caliper mounting bracket inward and slip outer
brake pad past the edge to remove.
8. Remove the inner brake pad.
PAD INSPECTION
1. Clean the caliper with brake cleaner or alcohol.
2. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
MEASUREMENT
Rear Brake Pad Thickness:
.298 ± .007″ (7.57 mm ± .178 mm)
Service Limit: .180″ (4.6 mm)
