Polaris RZR XP4 1000 2017

9
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
9.5
BRAKE SYSTEM OVERVIEW

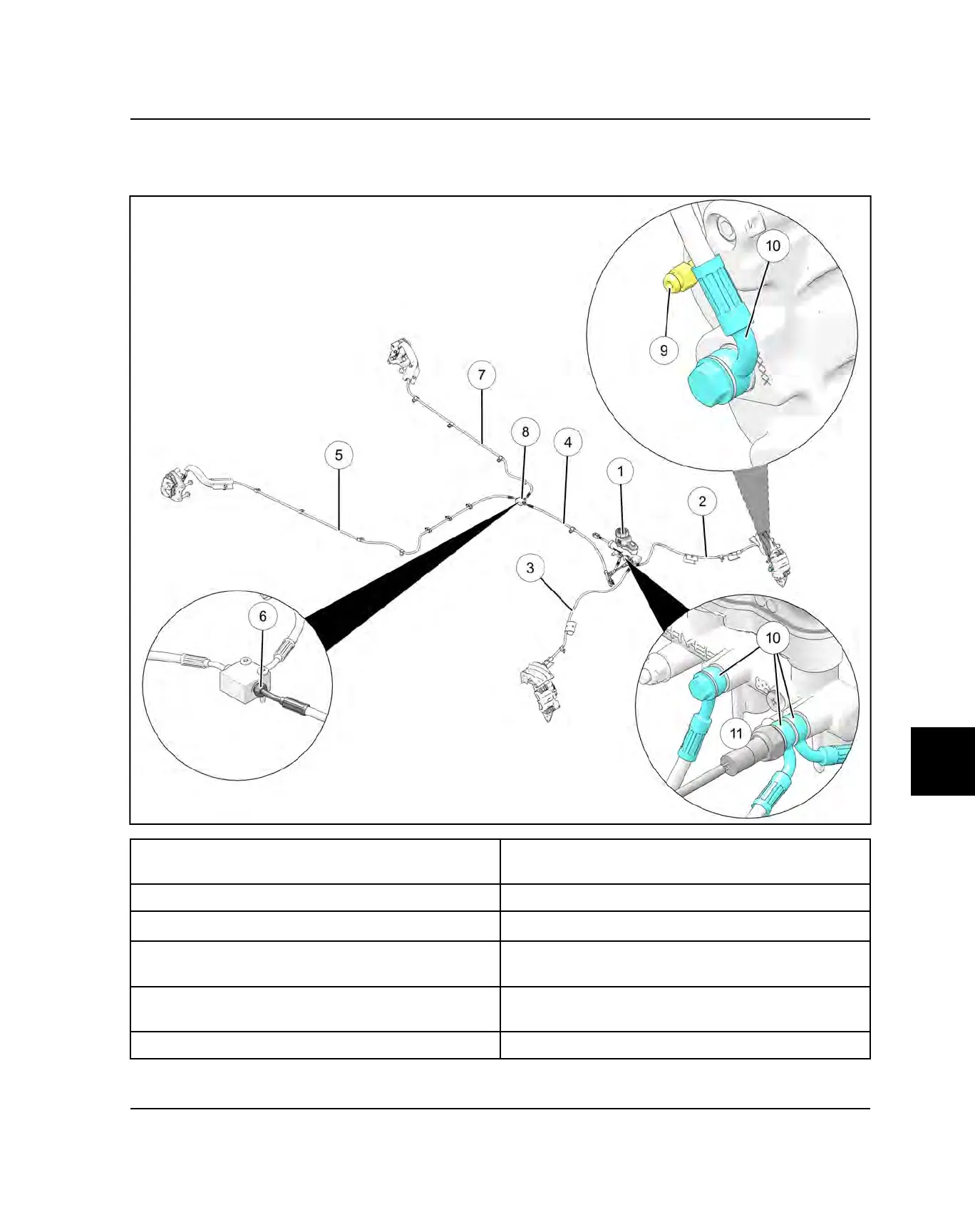

BRAKE SYSTEM ASSEMBLY VIEW
q
Master Cylinder
y
Flare Fitting
15 ft-lbs (20 Nm)
w
LH Front Brake Line
u
LH Rear Brake Line
e
RH Front Brake Line
i
Brake Tee-Fitting
r
MC Rear Brake Line
o
Bleed Screw
47 in-lbs (5 Nm)
t
RH Rear Brake Line
a
Banjo Fitting
15 ft-lbs (20 Nm)
s
Brake Switch
BRAKE SYSTEM
