9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual

9.13

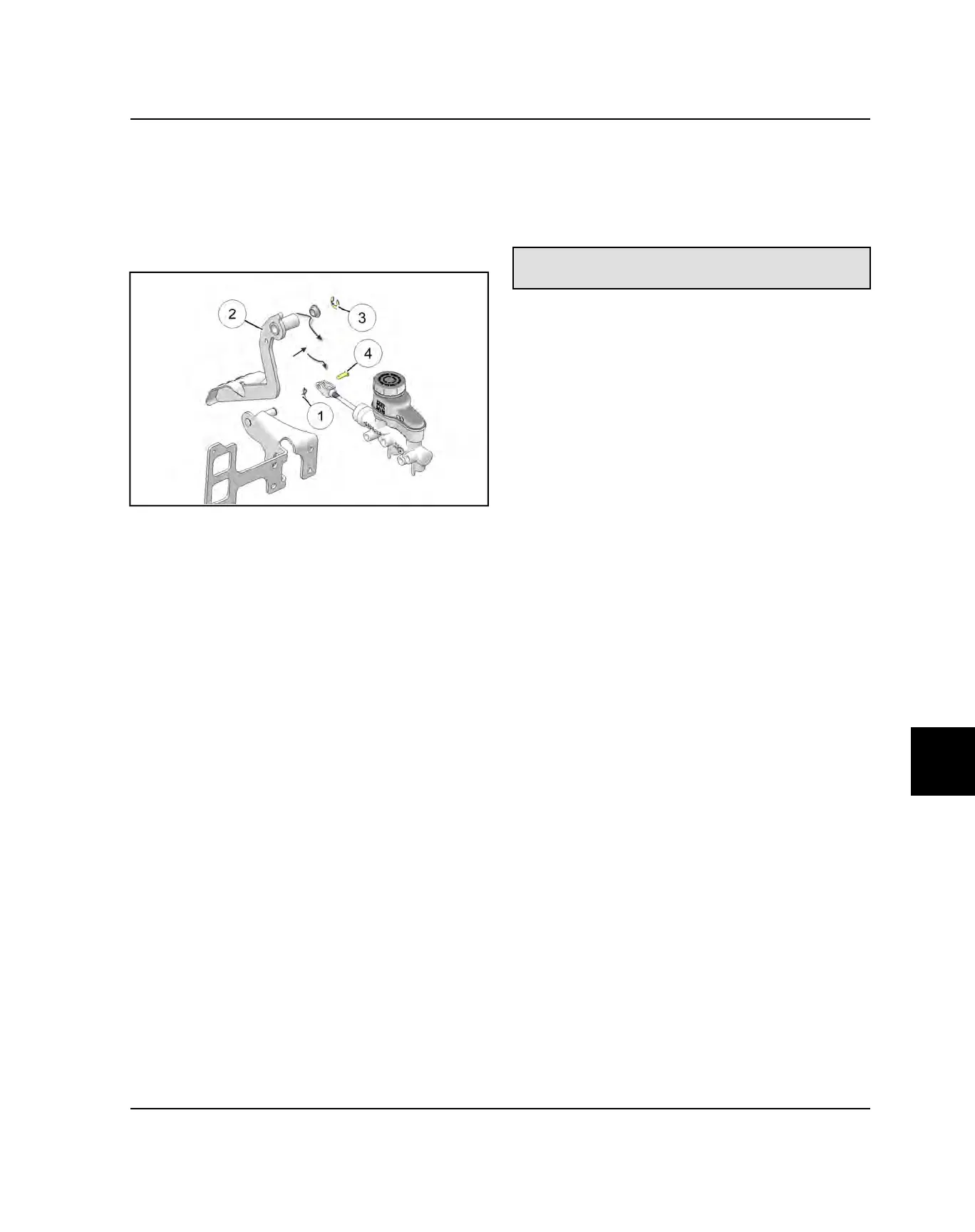

BRAKE PEDAL LEVER

BRAKE PEDAL REMOVAL

1. Locate the brake pedal lever

and remove the clip

and master cylinder clevis pin

2. Remove the E-clip

from the pedal mount and

remove the brake pedal lever

from the vehicle.

BRAKE PEDAL INSTALLATION

1. Reverse the “Removal” steps to install brake pedal

lever. Compare brake pedal free-play to

specification.

Brake Pedal Free-play:

0.090″ (2.28 mm)

BRAKE SYSTEM
