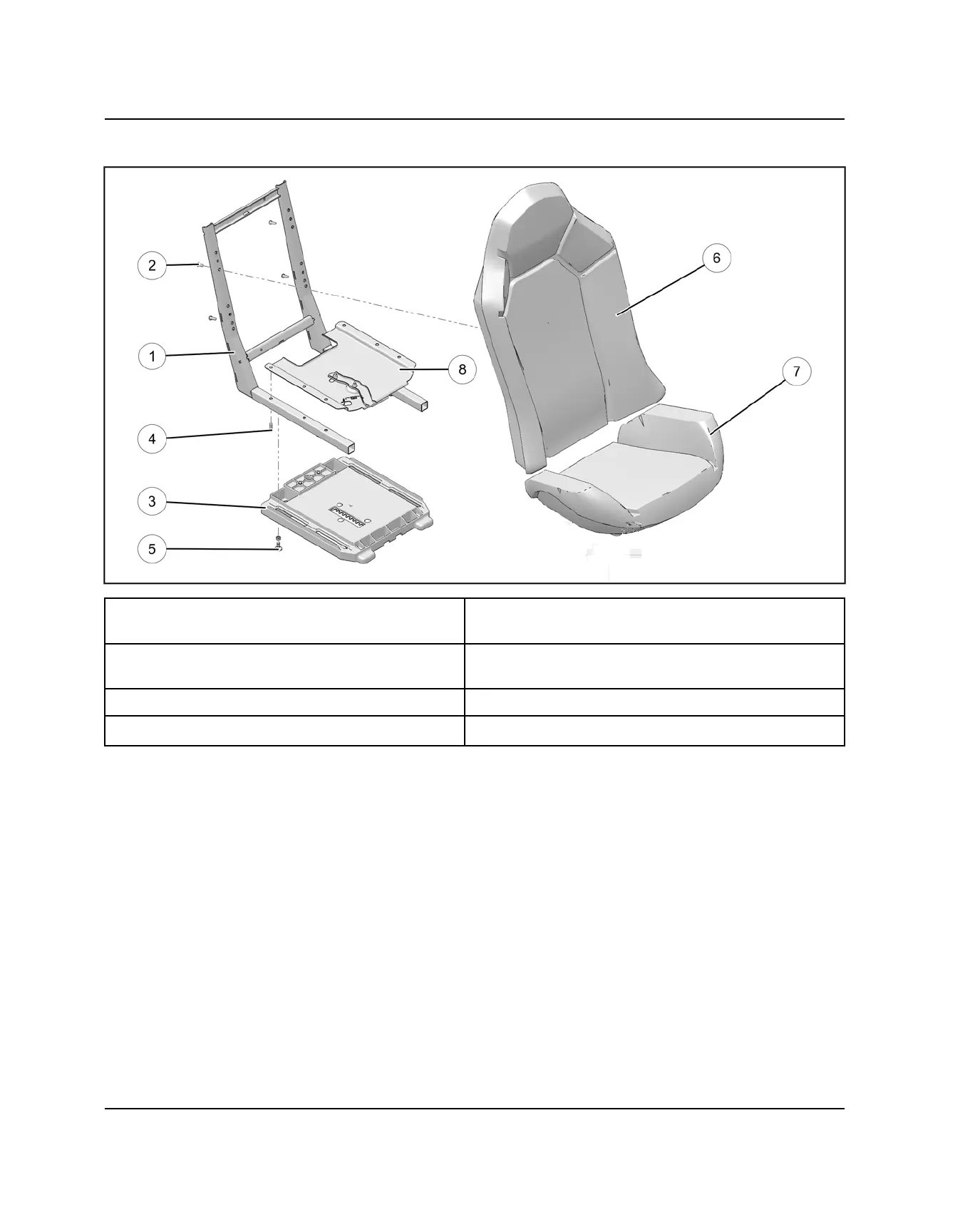

SEAT ASSEMBLY FRONT
q
Seat Frame
t
Seat Slider Screws
4 ft-lb (5 Nm)
w
Screw
4 ft-lb (5 Nm)
y
Seat Back
e
Seat Base
u
Seat Base Pad
r
Seat Latch Lever i
Seat Base Slider Assembly
BODY / FRAME
