FUEL LINES / TANK

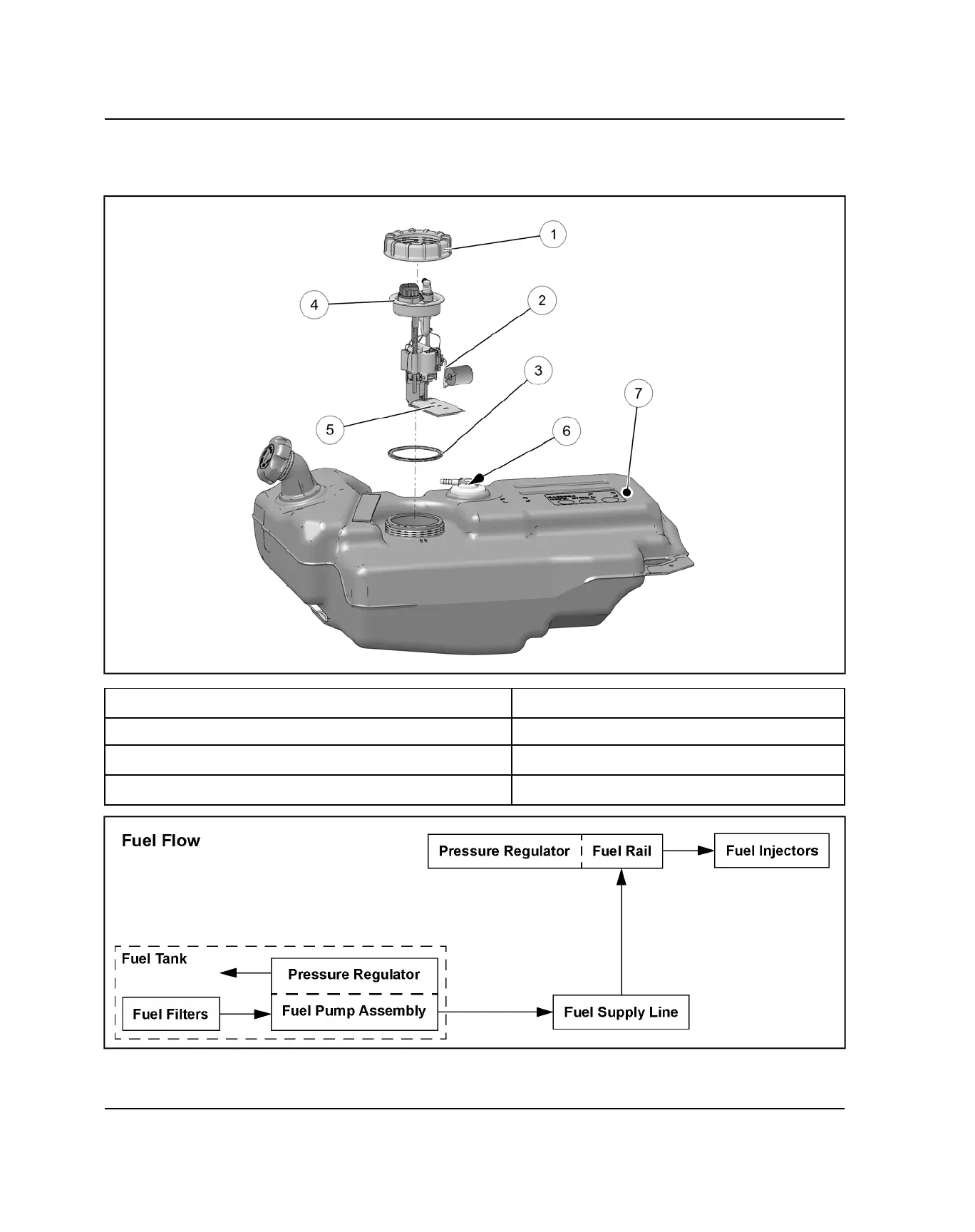

ASSEMBLY VIEW
q
PFA Nut
t
Preliminary Filter
w
Fuel Sender Float Arm
y
Fuel Tank Vent
e
PFA Gasket (replace if removed)
u
Fuel Tank Assembly
r
Fuel Pump / Regulator
