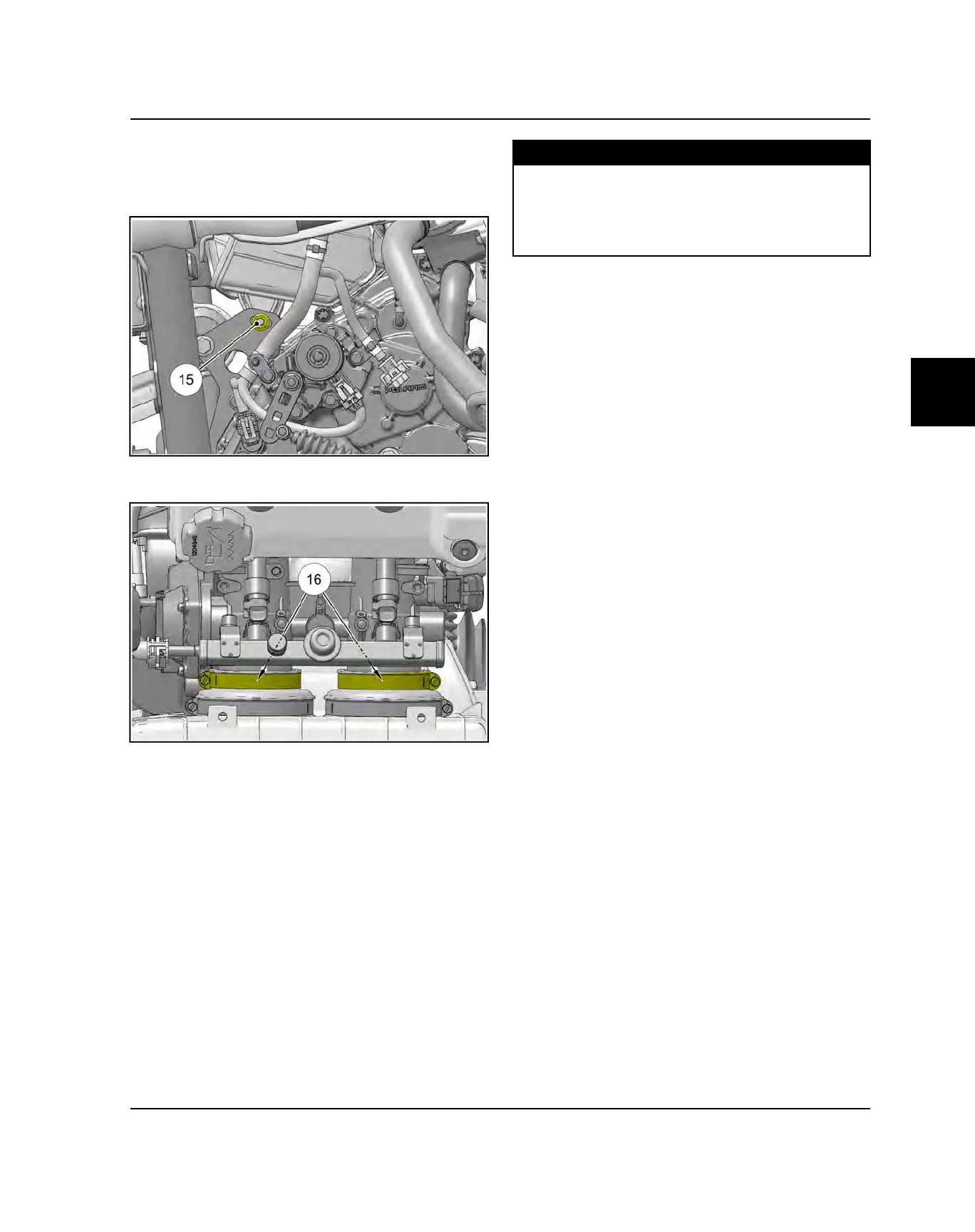

9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
4.17
21. Reinstall the intake plenum assembly and fasten the
lower mount to the transmission mount bracket.
• Be sure the lower air box post is placed properly into
the rubber grommet
h
.
• Be sure the air box boots fully seat onto the dual
throttle body before tightening the hose clamps
j
.
TORQUE
Hose Clamps:
35 in-lb (4 Nm)
Intake Manifold Mount Screw:
22 ft-lb (30 Nm)
22. Reinstall the breather into the air box and tighten the
hose clamps retaining the air box to the throttle body
assembly.
23. Reinstall the two screws retaining the air box
assembly.
24. Position the intake hose onto the air box and tighten
the hose clamp.
25. Reinstall the cargo box access panel.
