Polaris RZR XP4 1000 2017 User Manual

6
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.19

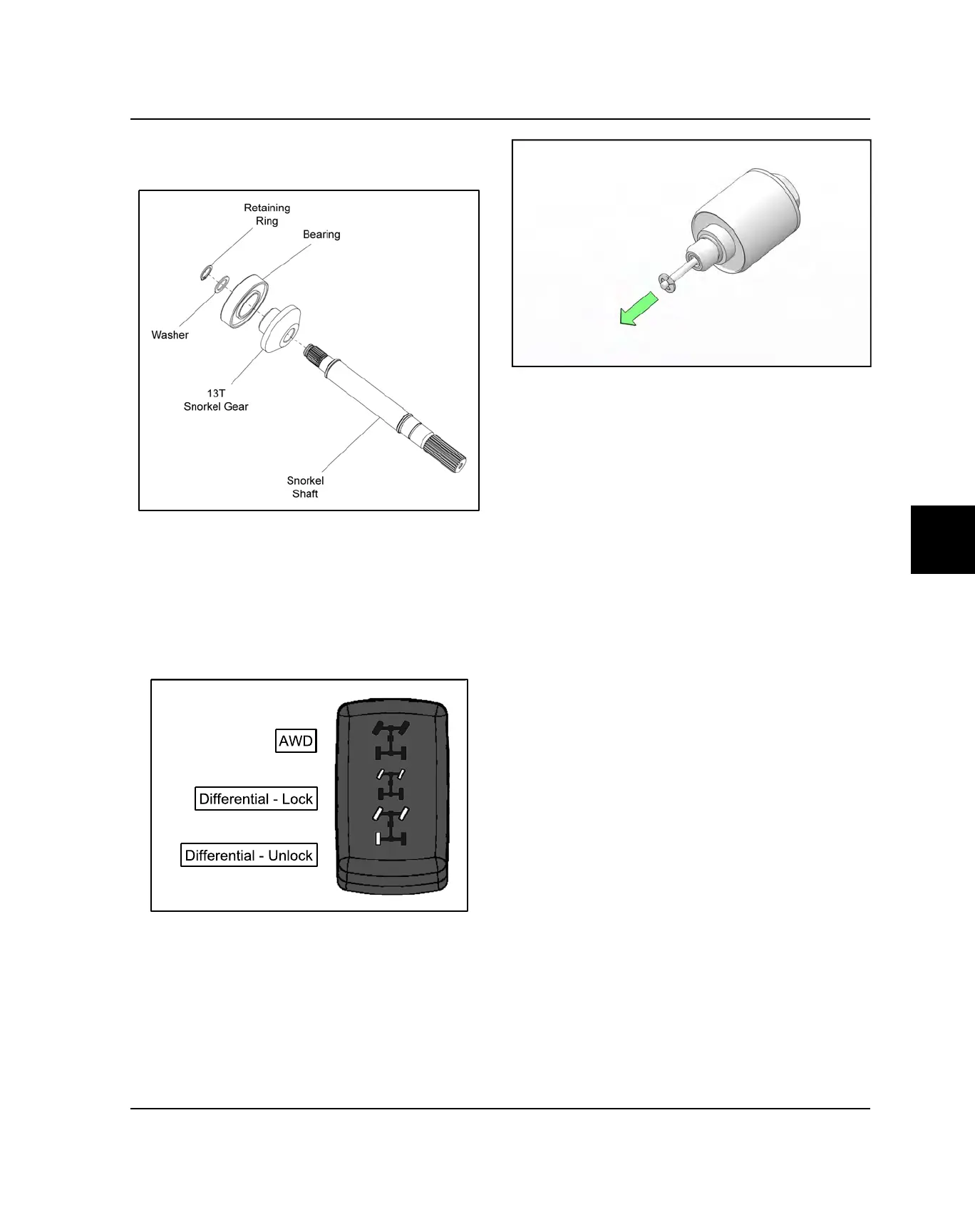

32.Remove the retaining ring to remove the remaining
washer, bearing and gear from the snorkel shaft.
DIFFERENTIAL OPERATION
Transmissions equipped with Turf Mode have two
traction operational modes: Differential Lock and
Differential Unlock. Locking the rear differential is
beneficial in low traction and rough terrain conditions.
Unlocking the rear differential makes maneuvering easier
and minimizes damage to terrain.
When “Differential-Unlock” is selected, the rear
differential becomes unlocked for tighter turns. An
electrical solenoid mounted in the rear portion of the
gearcase actuates the shift fork. The solenoid plunger
extends out to move the fork and slides the engagement
dog away from the side gear that is part of the planetary
differential assembly. This unlocks the rear differential.
The rear drive shafts are now dependent on the
differential allowing for tighter turns.
TRANSMISSION
