9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

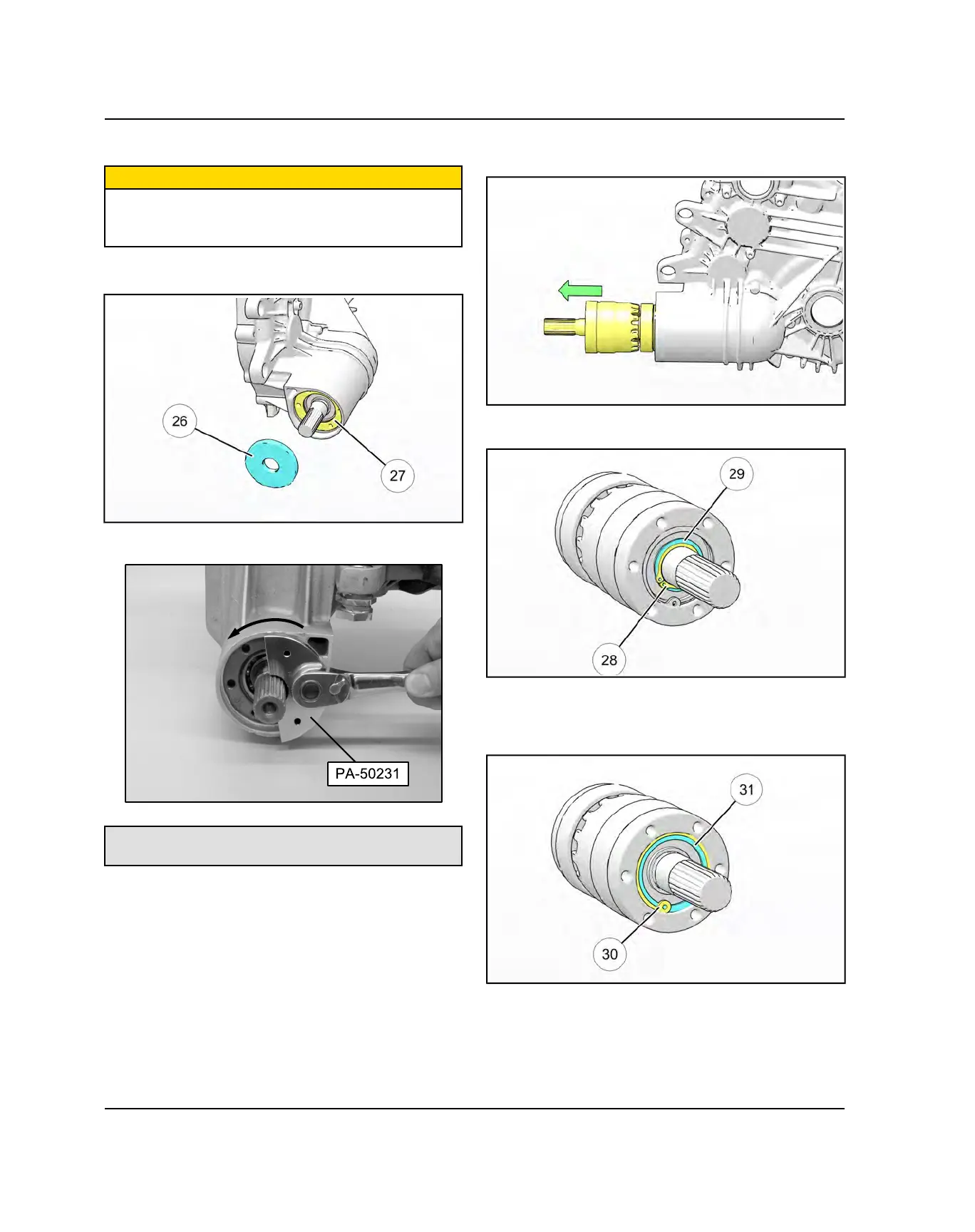

Snorkel Shaft Removal / Disassembly
CAUTION
The pinion shaft must be removed prior to removing the
snorkel shaft assembly. Failure to remove pinion shaft,
will result in damage to the snorkel shaft.
25.Extract the seal
2^
from the snorkel shaft to access
the snorkel tube
2&
for removal.
26.Using the Snorkel Tool, fully loosen the snorkel tube.
Snorkel Tool:
PA-50231
27.Remove the snorkel tube and shaft assembly from
the transmission case.
28.Remove the snap ring
2*
and shim
2 (
from the
snorkel shaft.
29.Use an arbor press to remove the snorkel tube from
the snorkel shaft.
30.Remove the snap ring
3)
and shim
3!
retaining the
bearing in the snorkel tube.
31.Lightly tap on the bearing from the opposite side to
remove it from the snorkel tube.
TRANSMISSION
