9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.25

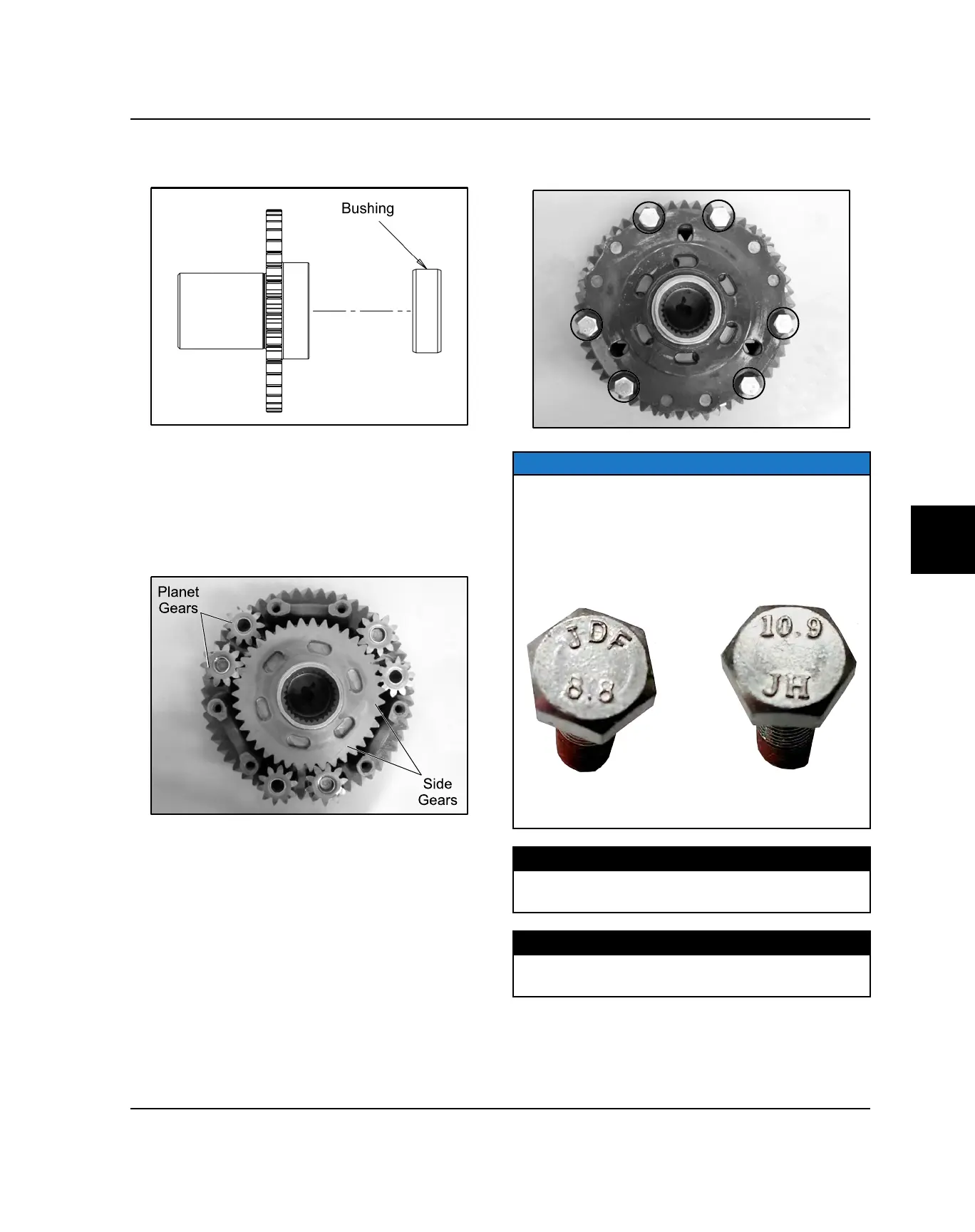

14. Press the new bushing into the side gear until it
bottoms out.
PLANETARY DIFFERENTIAL ASSEMBLY
(TURF MODE MODELS ONLY)
1. Thoroughly clean the differential components.
2. Assemble the side gears and place them onto the
ring gear along with the six planet gears.
3. Align and install the differential cover using the
previously made scribe marks.
4. Apply Loctite® 2760™ to cover screws.
5. Install screws hand tight. Place assembly in soft jaw
vise and torque to specification.
NOTE
The are two possible grades for the differential cover
screws. The grade can be located on the head of the
fastener. The two possible fasteners are grade 8.8 and
grade 10.9. Torque the screws according to their
corresponding grade.
TORQUE
Differential Cover Screws (8.8 Fastener):
22 ft-lb (30 Nm)
TORQUE
Differential Cover Screws (10.9 Fastener):28 ft-lbs (38
Nm)
TRANSMISSION
