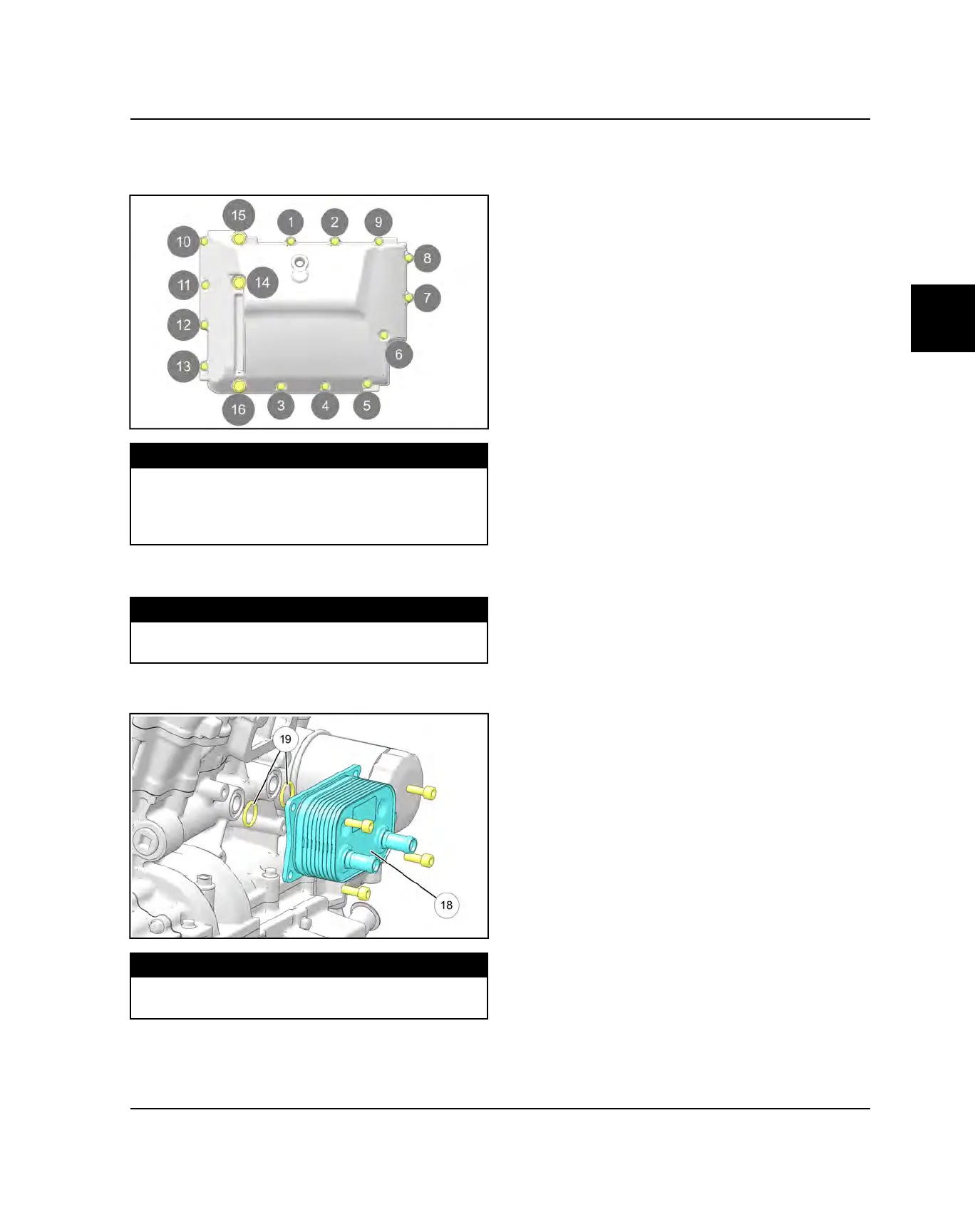

24. Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
TORQUE
Oil Sump Cover Bolts:
M8 Bolts: 26 ft-lb (35 Nm)
M6 Bolts: 106 in-lb (12 Nm)
25. Install the crankcase drain plug if previously
removed. Torque drain plug to specification.
TORQUE
Crankcase Drain Plug:
12 ft-lbs (16 Nm)
26. Install the oil cooler
l
. Use new O-rings
1 (
upon
installation. Torque fasteners to specification
TORQUE
Oil Cooler bolts:
7 ft-lbs (10 Nm)
27. Proceed to Flywheel Installation, page 3.72 and then
Cylinder Head Installation, page 3.75.
