3.79

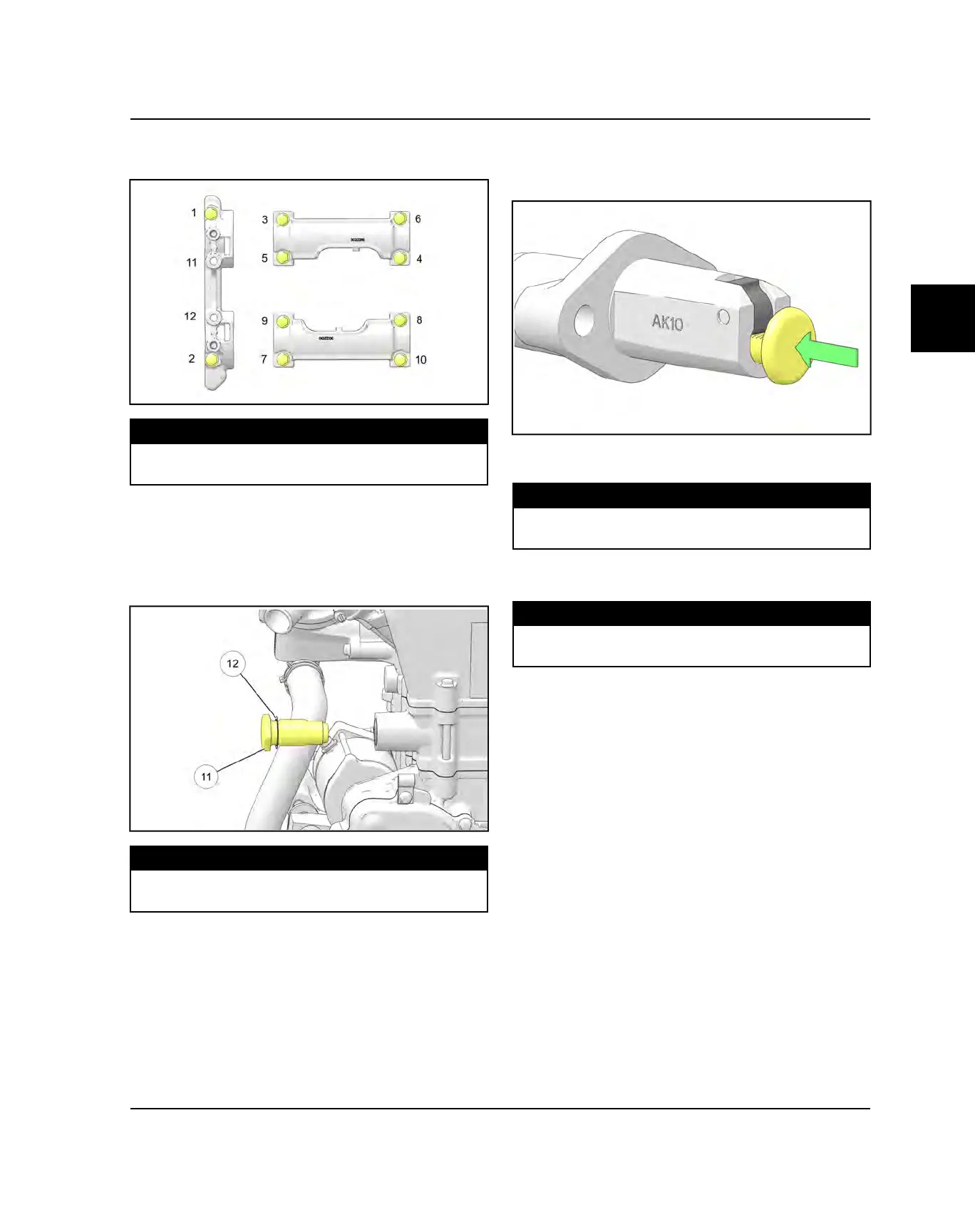

20. Torque the camshaft carriers bolts in sequence to
specification.
TORQUE
Camshaft Carrier Bolts:
7 ft-lb (10 Nm)
21. Apply Polaris PS-4 engine oil to the cam chain
tensioner bore prior to assembly. Use a new
tensioner sealing washer
d
.
22. HYDRAULIC TENSIONER ONLY: Install the cam
chain tensioner
s
into the cylinder and torque to
specification.
TORQUE
Hydraulic Cam Chain Tensioner:
29 ft-lb (40 Nm)
23. MECHANICAL TENSIONER ONLY:
• Retract the plunger all the way in and install into the
cylinder.
• Install the two mounting bolts. Torque fasteners to
specification.
TORQUE
Tensioner Mounting Bolts:
7 ft-lb (10 Nm)
• Install the plunger bolt. Torque fastener to
specification.
TORQUE
Plunger Bolt:
15 ft-lb (20 Nm)
24. Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
